Isaac Lab

Introduction

An Isaac Lab (Isaac Sim) based training environment for RBQ10 quadruped locomotion.
It provides a high-fidelity simulation that enables training, replaying, and exporting policies for real-robot deployment.

System requirements

Item	Requirement
OS	Ubuntu 22.04 (x86_64)
GPU	CUDA-capable NVIDIA GPU
Disk	Minimum 80 GB, recommended 120 GB+ (includes Isaac Sim / Isaac Lab / Conda / cache)
Network	Required for initial setup (large downloads: wget, git clone, pip)

i

NOTE — Version pins

Check dependencies.yaml and scripts/setup.bash for the exact version requirements before installing.

Workflow

Setup → Train → Play → Deploy

Step	Description
Setup	Install Isaac Sim, Isaac Lab, Conda, and dependencies via setup.bash
Train	Train the rbq10 task
Play	Replay and verify the policy with rbq10_play
Deploy	Export artifacts (policy.onnx, info.json) and run on the robot

Isaac Sim	MuJoCo

Setup

Navigate to the rbq_lab directory inside the RBQ repository:

cd <workspace>/rbq_simulator/rbq_lab

Run the setup script:

bash scripts/setup.bash

This installs Isaac Sim, Isaac Lab, Conda, and all Python dependencies.

Train

bash scripts/train.bash

Default task: rbq10. Training logs are stored under logs/rsl_rl/<experiment_name>/.

Key options (pass via train.py, or edit inside scripts/train.bash):

Option	Description
--task	Task name (default: rbq10)
--num_envs	Number of parallel environments
--headless	Disable GUI
--resume	Resume from checkpoint
--checkpoint	Specific checkpoint path
--max_iterations	Training iteration limit

Full option list: bash scripts/python.bash rbq_lab/train.py --help

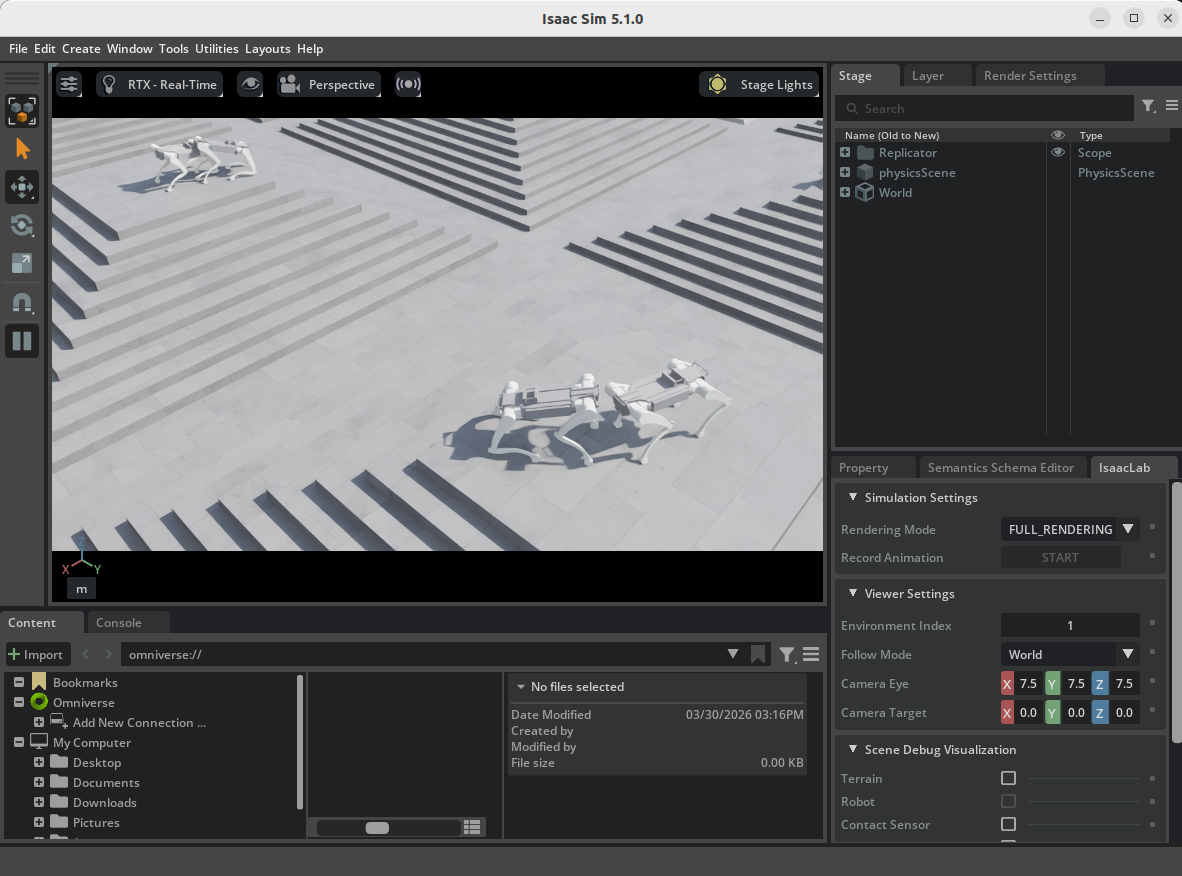

Train RBQ-Lab

Play

Replay and verify the trained policy:

bash scripts/play.bash

Default task: rbq10_play. Specify the model checkpoint explicitly for reproducibility:

# Edit scripts/play.bash to add --checkpoint <path/to/model_*.pt>

Key options:

Option	Description
--checkpoint	Path to .pt checkpoint
--use_pretrained_checkpoint	Use bundled pre-trained policy
--real-time	Run at real-time speed
--video	Record video

Full option list: bash scripts/python.bash rbq_lab/play.py --help

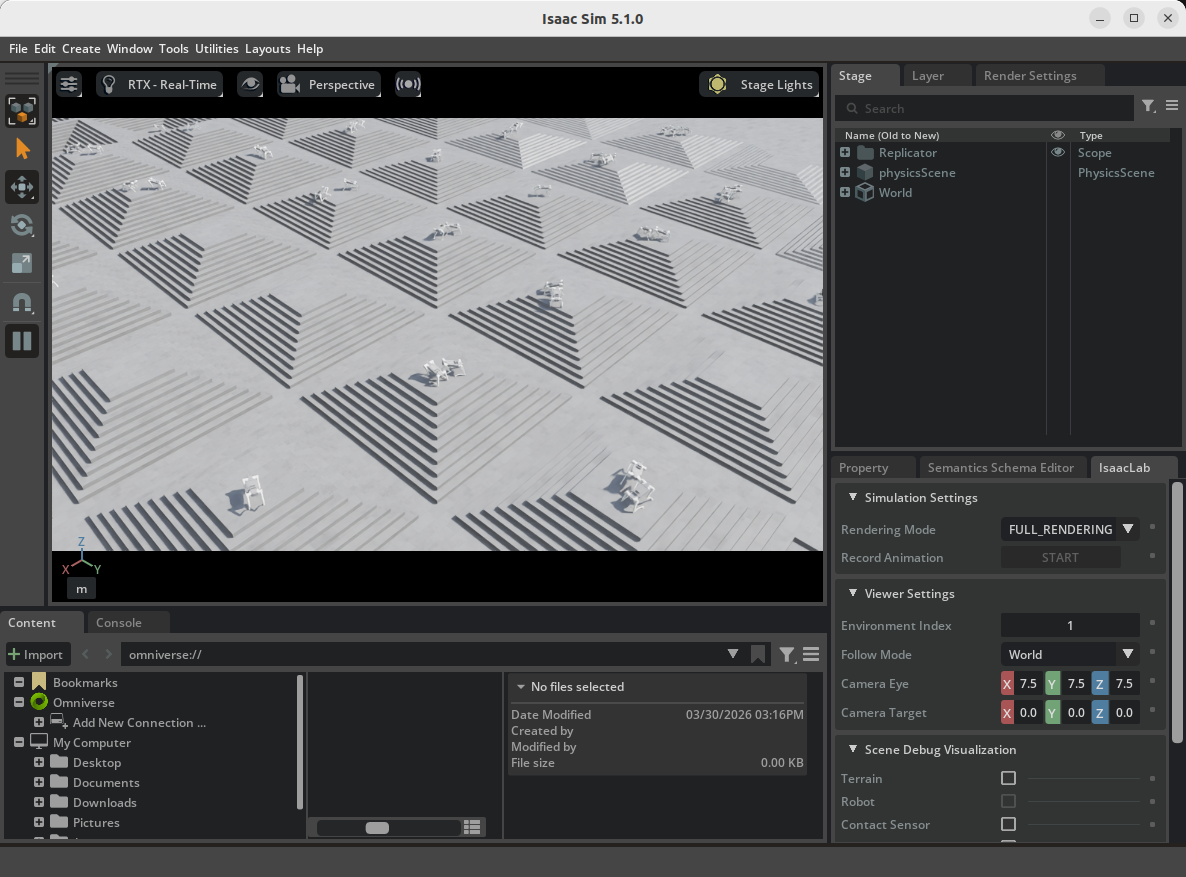

Play RBQ-Lab

Deploy

After Play, the export artifacts are generated under logs/<experiment_name>/exported/:

logs/<experiment_name>/exported/
├── policy.jit
├── policy.onnx
└── info.json

Pre-trained policies are also available at:

rbq_simulator/rbq_lab/policy/rbq10/
├── info.json
└── policy.onnx

To evaluate and deploy to the real robot, see Low Level (RL Policy).

Directory structure

rbq_simulator/rbq_lab/
├── rbq_lab/
│   ├── envs/
│   │   ├── base/
│   │   │   ├── base_task.py
│   │   │   └── base_task_cfg.py
│   │   └── rbq10/
│   │       ├── env.py, env_cfg.py, env_mdp.py
│   │       ├── rbq10.py
│   │       └── rsl_rl_ppo_cfg.py
│   ├── play.py
│   ├── train.py
│   └── utils/
│       ├── camera.py, cli_args.py, keyboard.py
│       ├── marker.py, math.py, rough.py
├── policy/
│   └── rbq10/
│       ├── info.json
│       └── policy.onnx
├── scripts/
│   ├── setup.bash, train.bash, play.bash
│   ├── activate.bash, clear.bash, configure.bash
│   ├── isaacsim.bash, python.bash
├── dependencies.yaml
└── setup.py

Notes:

• USD and other assets: place under resources/ (referenced via LAB_ASSET_DIR).
• Training logs: logs/rsl_rl/<experiment_name>/
• Cleanup: bash scripts/clear.bash (removes *.egg-info, __pycache__, and optionally logs/)

Adding a new environment

1. Add a new environment folder under rbq_lab/envs/.
2. Create env.py, env_cfg.py, env_mdp.py, and rsl_rl_ppo_cfg.py for the new task.
3. Add robot/environment assets (USD, etc.) under resources/ and reference via LAB_ASSET_DIR.
4. Register the environment in rbq_lab/envs/__init__.py.
5. Run training with a small num_envs first to validate asset paths, observation/action sizes, and reward definitions.
