RB Series Software Update v2.1 ​

HOW TO UPDATE SOFTWARE ​

WARNING

  • It is recommended to back-up the program files (.wsl) inside the tablet UI before the system update.

1. Rainbow Robotics' system update is a two-step process. ​


UI update through APK install → System software (control box) update


2. Backup Program file ​

Connect the tablet and personal / business PC and obtain the program files (.wsl) from the path below and back them up.

  • It is recommended that you back up the acquired files before proceeding to the next step.

Tablet > Android > data > com.rainbow.cobot > files > work > GET .wsl files


3. UI Program Update ​

Rainbow Robotics' tablet UI program is distributed in the form of APK.
This is the same installation file as a regular Android application. Therefore, UI program is updated by moving the installation APK file to the tablet and installing it.

WARNING

  • Since the program files (.wsl) are also deleted when the existing application is deleted, back up the program file in step 1.2 before proceeding with this process.
  • When updating without deleting the existing application, program files (wsl) and other settings are maintained. Nevertheless, it is recommended to back up the 1.2 process

Copy the distributed APK file into Table → APK install


4. Connection between Tablet PC and Control Box ​

Connect the tablet to the control box using a USB cable and run the UI program. After running the UI program, connect the tablet and the control box communication.

  • If the communication between the tablet and the control box is normal, the first box will be lit blue. For safety reasons, it is recommended not to initialize the robot arm

UI Home → Setup → Click ‘State’ button → Connect


5. Go to and activate the system software update ​

Navigate to the system software update path as shown below.

UI Home → Setup → System Tab

missing

In the [Software Update] section on the right, click the Activate checkbox.

missing

6. Progress Control-Box System Software Update ​

The Update button will appear and click this button to open a popup window.

missing

  • Press “OK” button to update the control box software.
  • If the update is completed normally after clicking the OK button, the PC of the control box (controller) will automatically restart within 5 ~ 15 seconds.
  • During the restart process, “Please Wait…” is displayed on the LCD of the control box. This indicates that the control box is rebooting.
  • After the reboot is completed, “Normal Operation” (or other messages may appear) is displayed on the LCD of the control box.

7. Check the Software Update ​

Reconnect the UI tablet and control box.

UI Home → Make → Click ‘State’ button → Connect

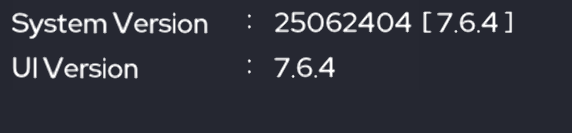

When you go back to the home screen of the UI, the software version is displayed on the upper right (or lower left). Check if it is updated to the correct version.

missing

When the update is completed normally, this update
System Version: 22012803, Ui Version: 4.1.3 should be displayed
