External Port Inforamation

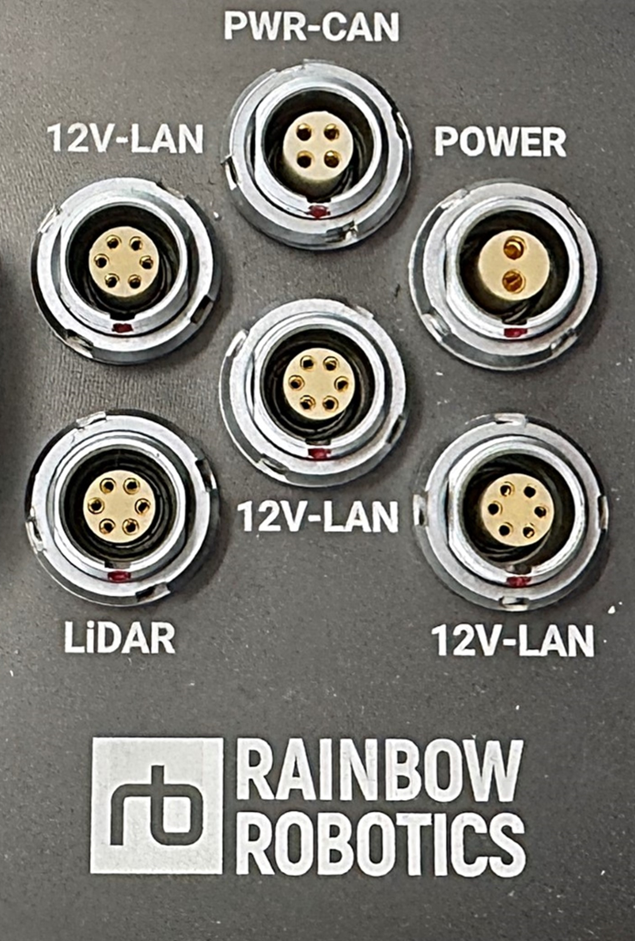

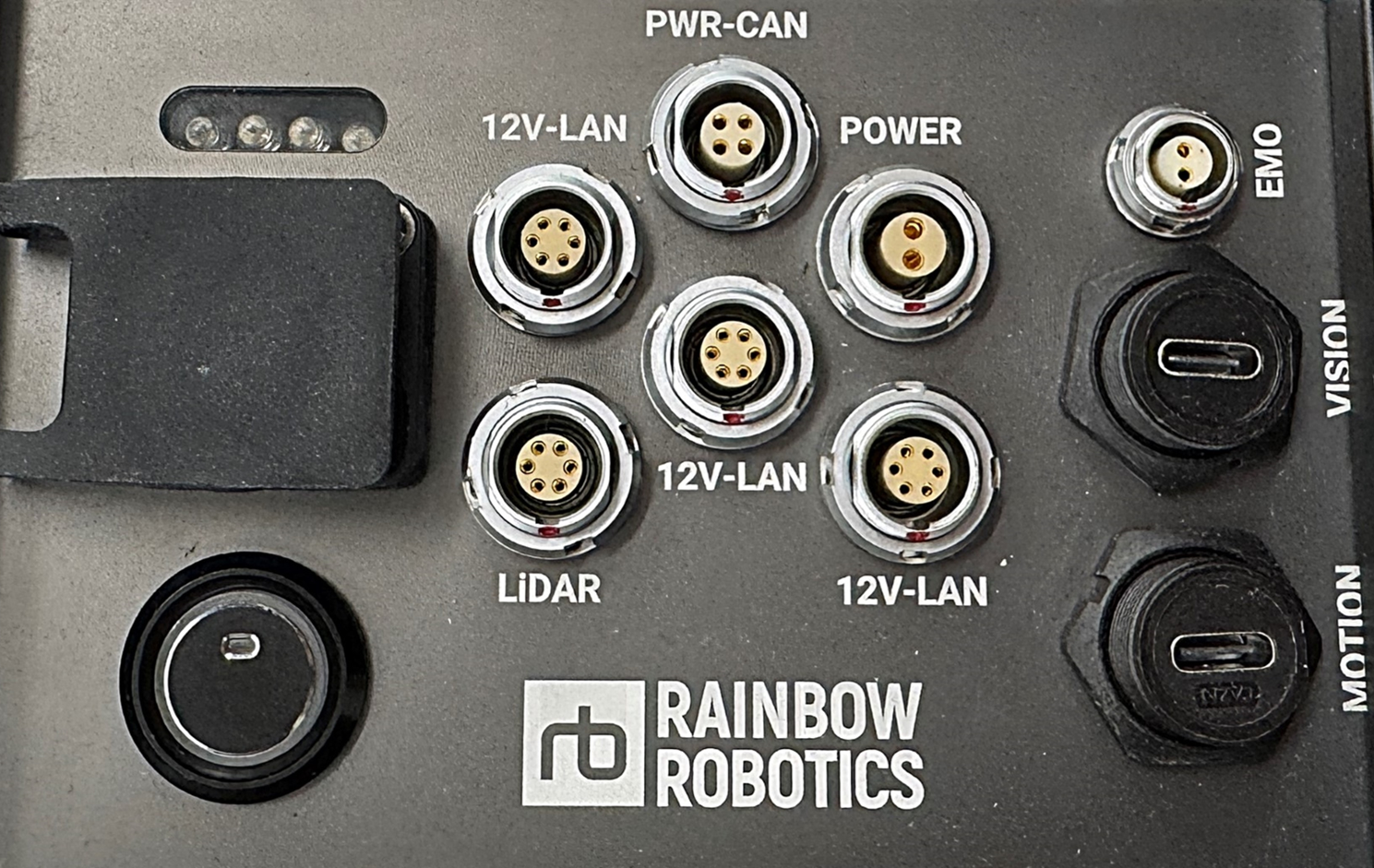

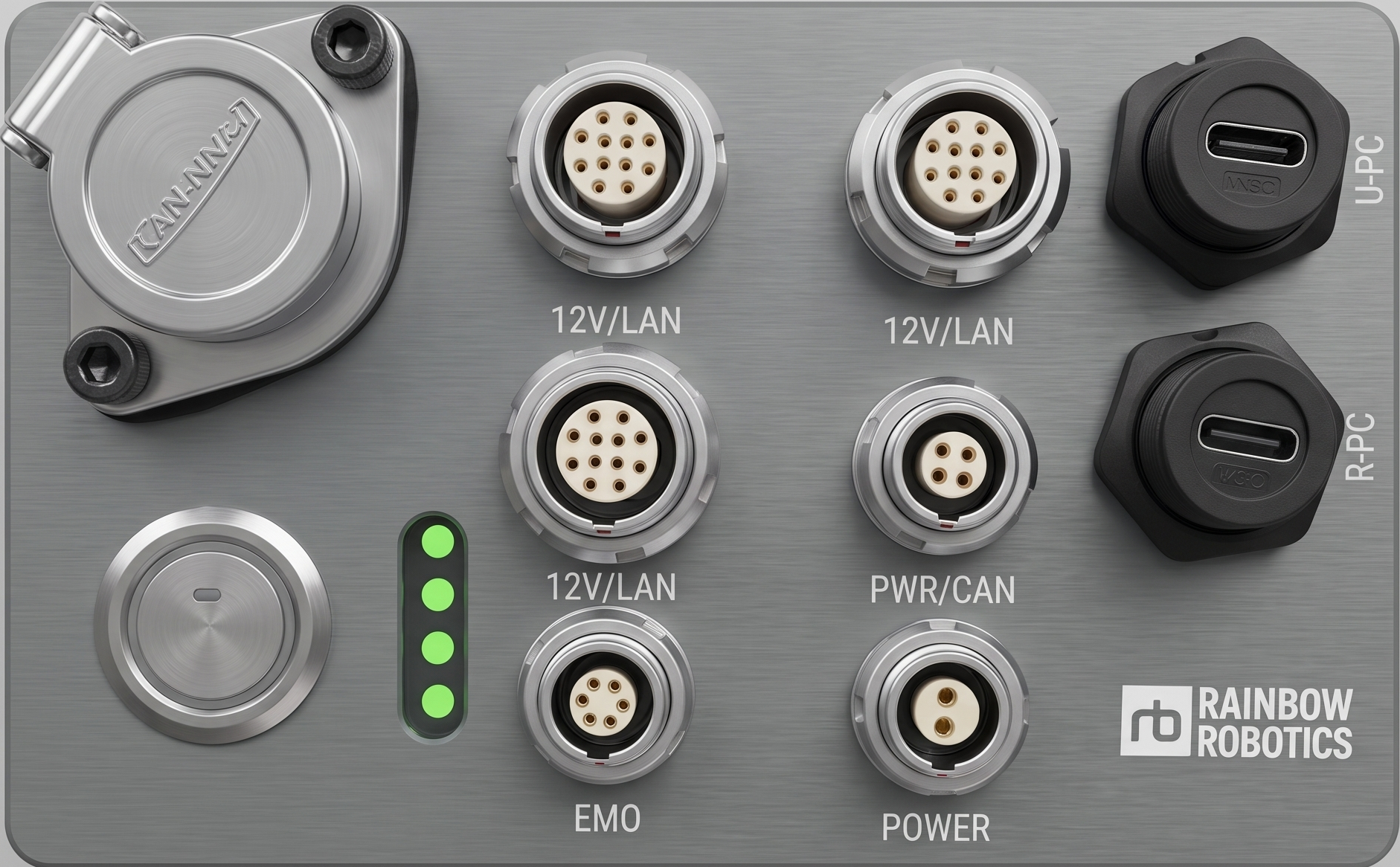

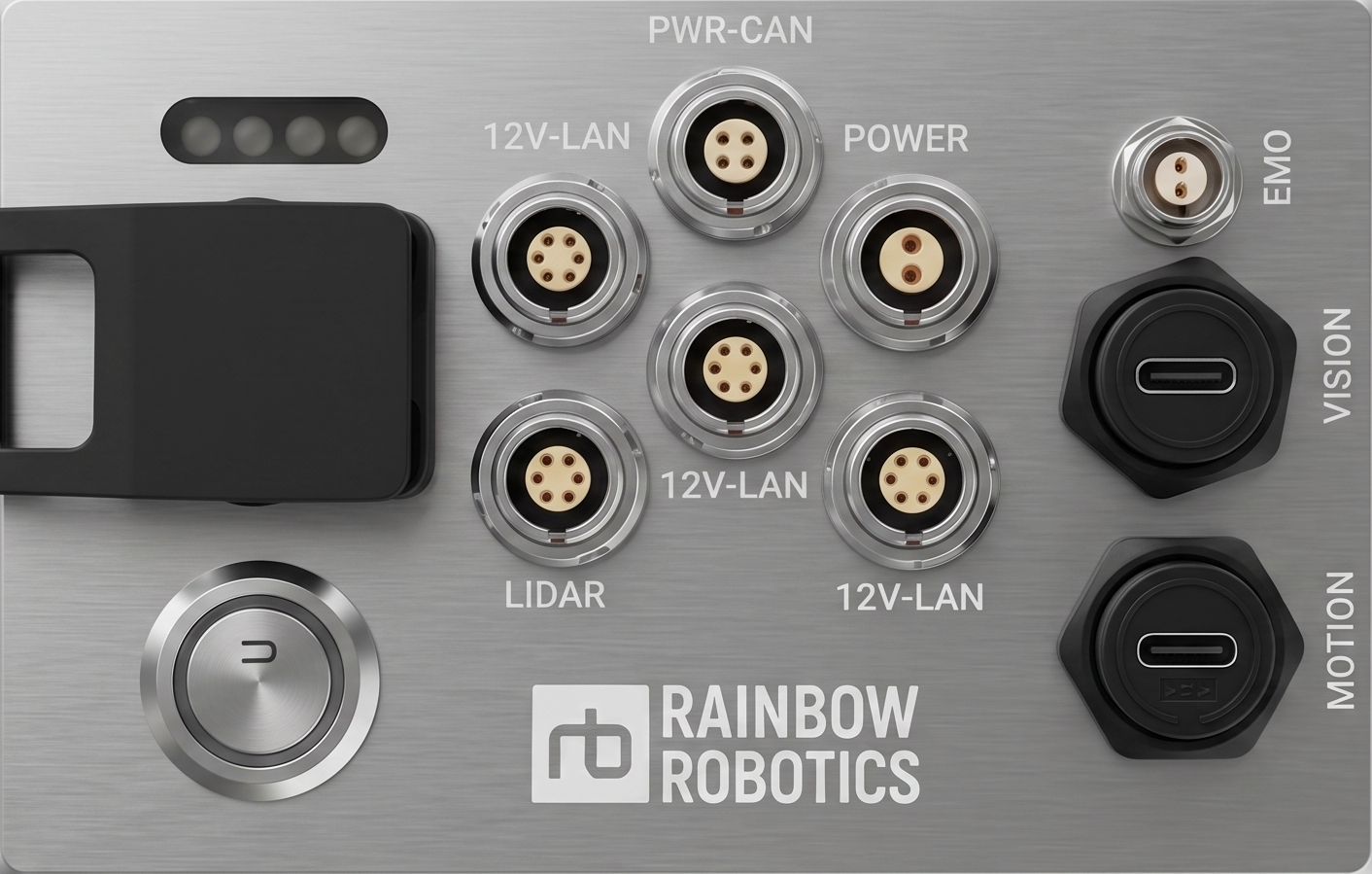

Overal External Port Panel

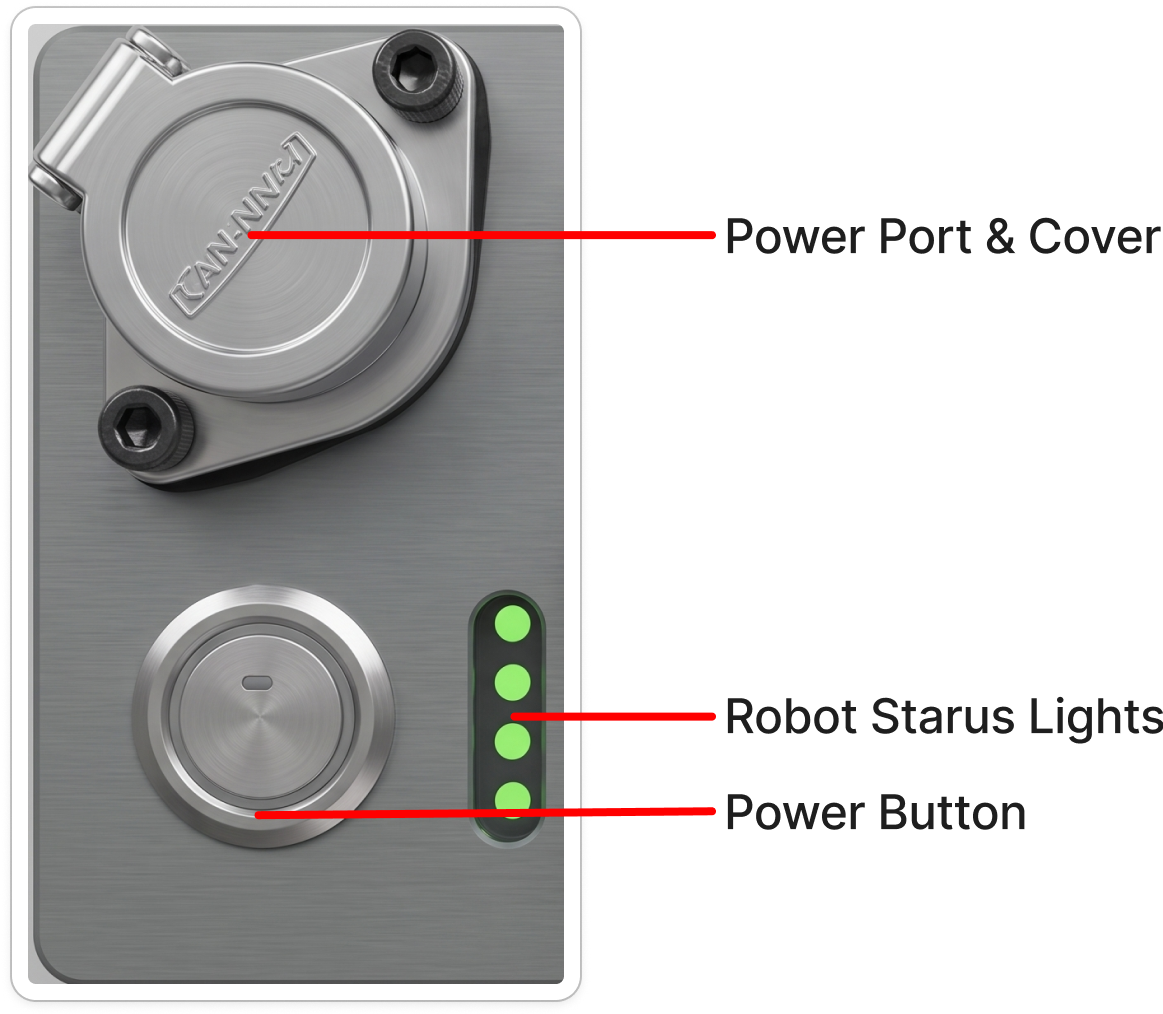

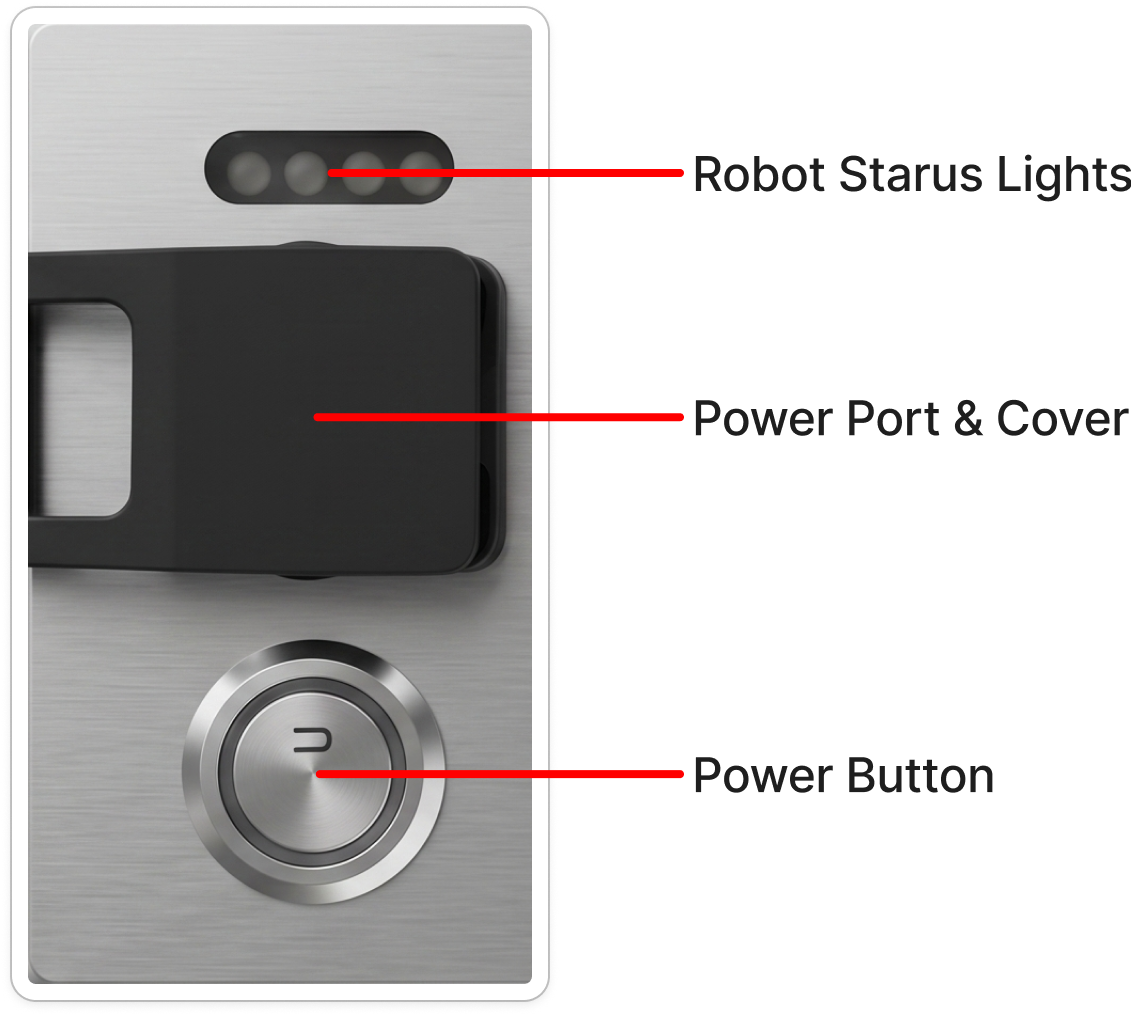

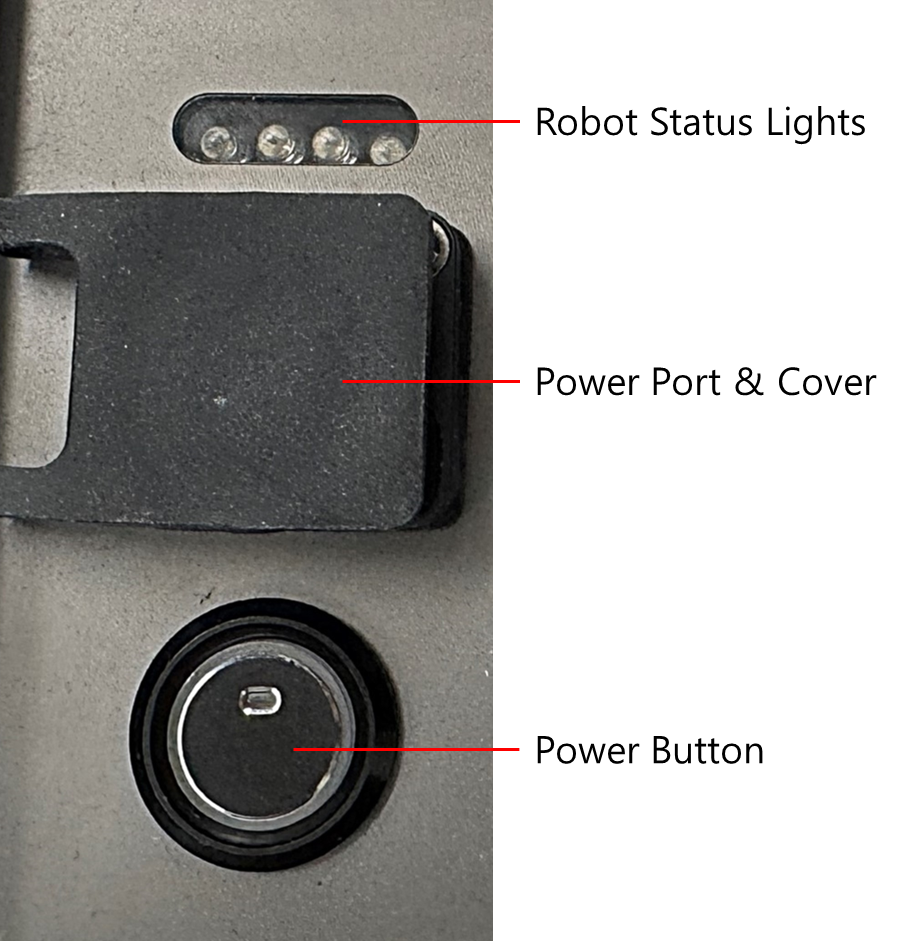

Charging & Power Switch

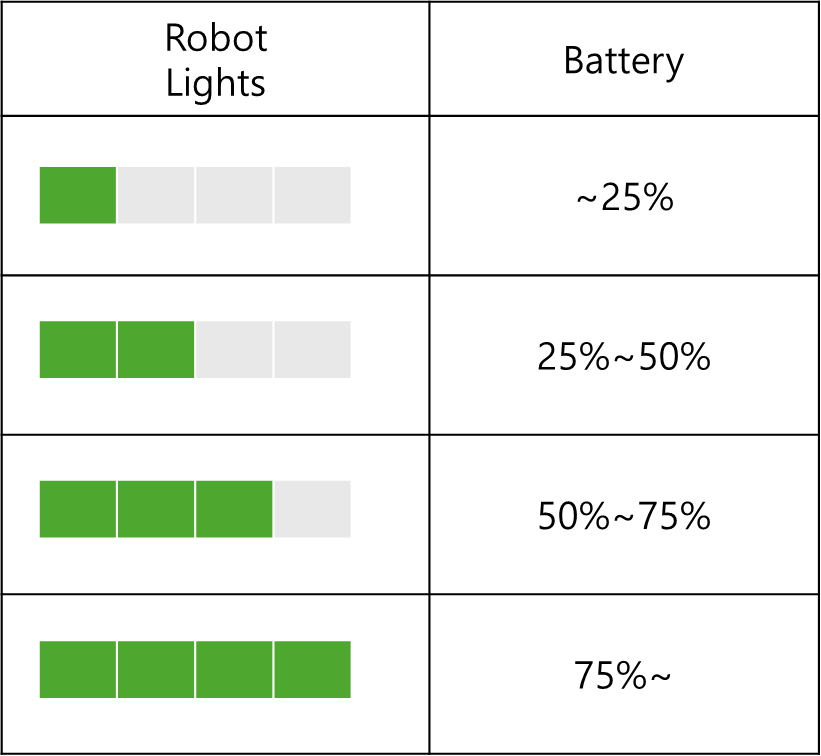

- Robot Battery Lights

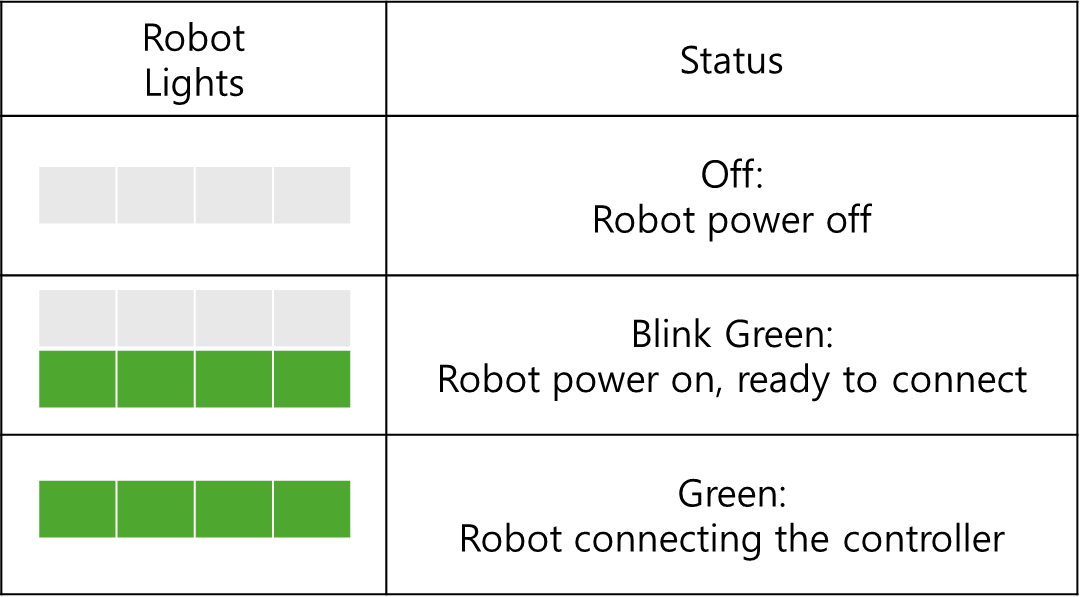

- Robot Status Lights (blinking)

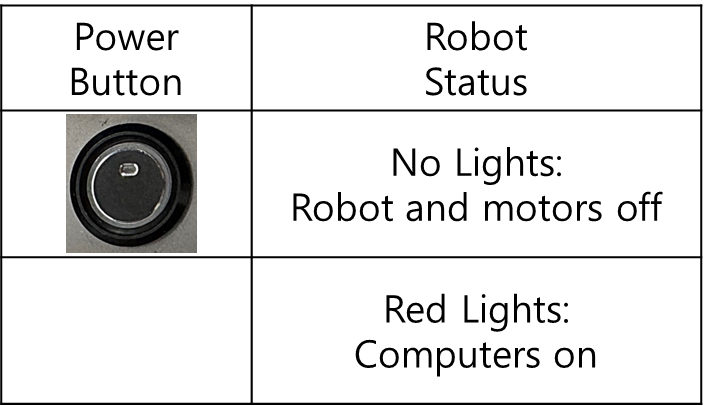

- Power Button Status

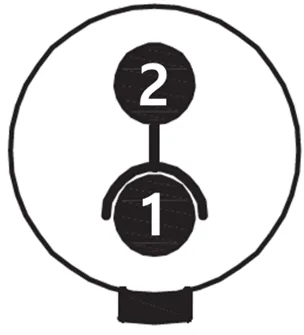

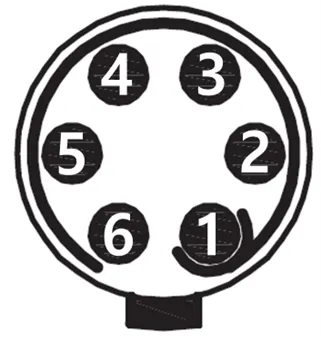

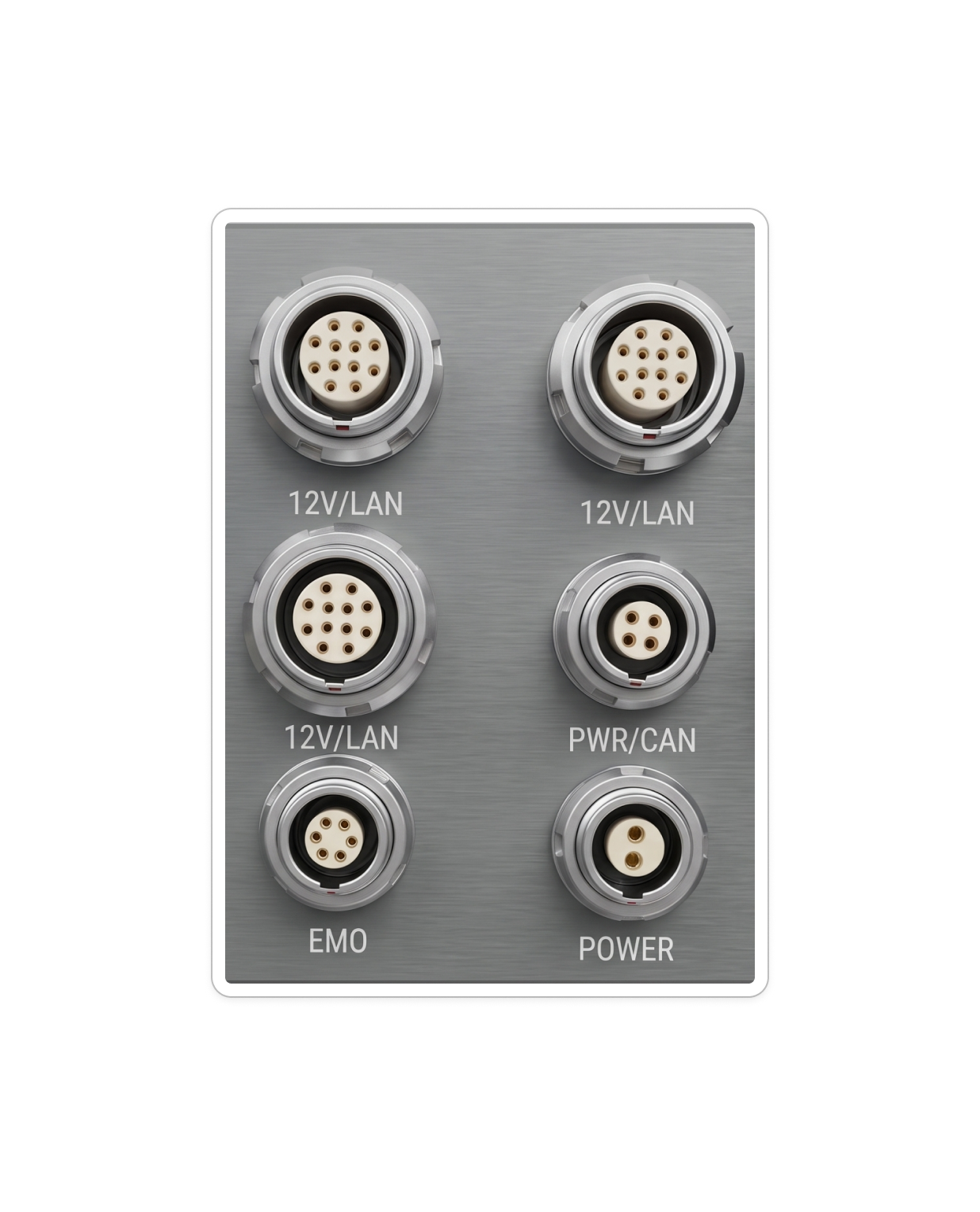

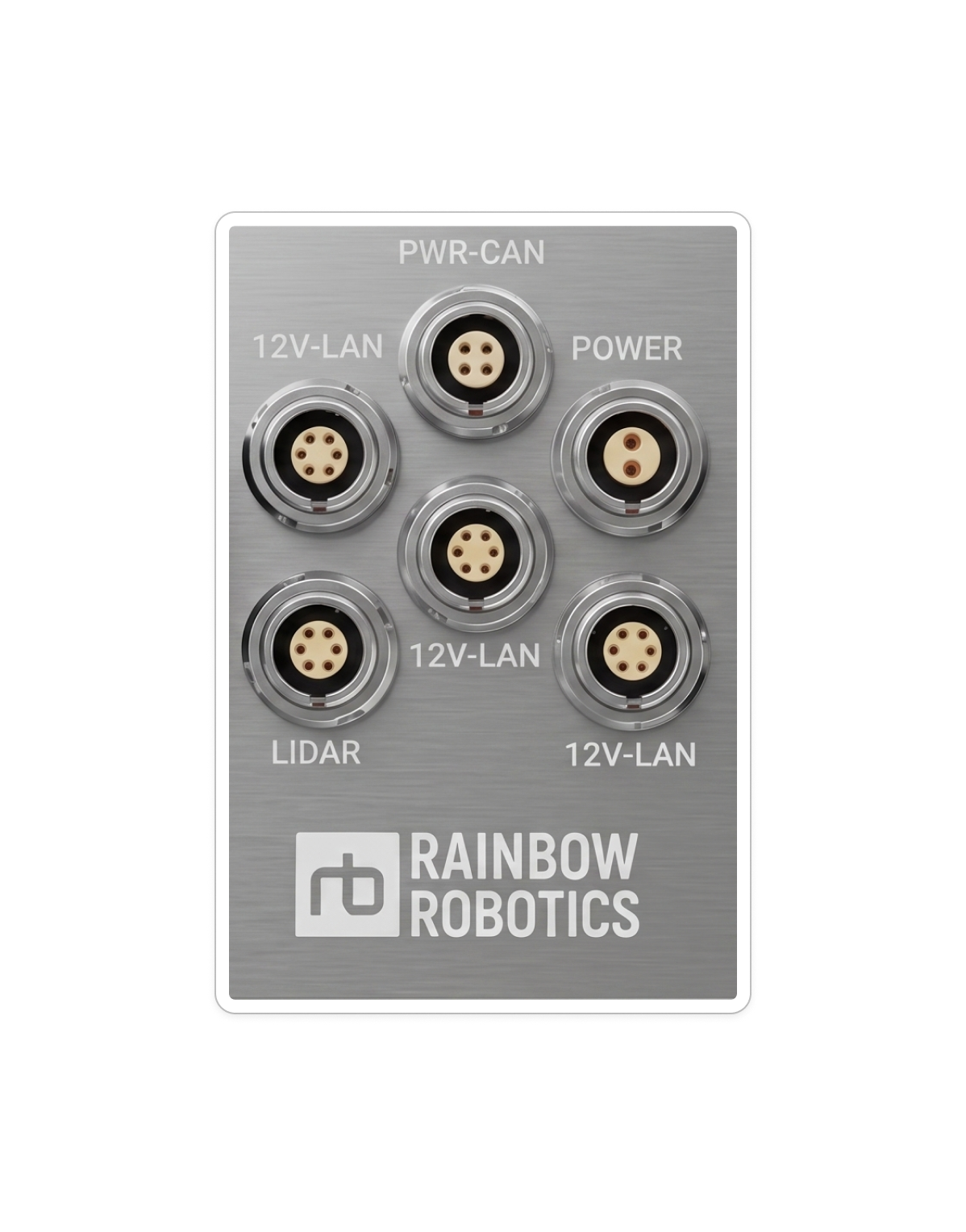

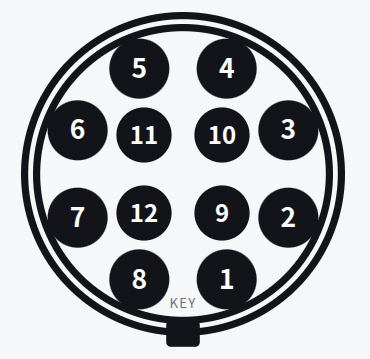

User Port Pin Map
POWER
| Pin | Function | Color |
|---|---|---|

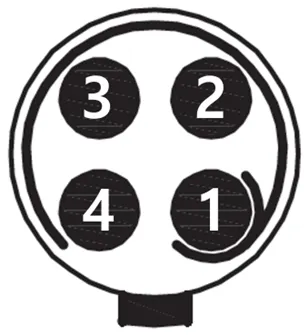

| 1 | VCC | Red |
| 2 | GND | Black |
- VCC: 42.0 ~ 58.4V (Battery Power)
- Max. Current: 5A
PWR-CAN
| Pin | Function | Color |
|---|---|---|
| 1 | VCC | Red |
| 2 | GND | Black |
| 3 | CAN High | White |
| 4 | CAN Low | Blue |
- VCC: 42.0 ~ 58.4V (Battery Power)
- Max. Current: 10A
- *Can Communication is Connected to the Robot PC*
12V-LAN

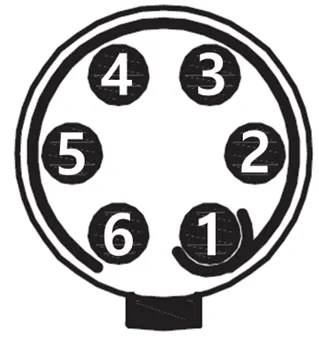

| Pin | Function | Color |
|---|---|---|
| 1 | VCC | Red |
| 2 | GND | Black |
| 3 | LAN TX+ | White/Green |
| 4 | LAN TX- | Green |
| 5 | LAN RX+ | White/Orange |
| 6 | LAN RX- | Orange |
- VCC: 12V
- Max. Current: 2A
- Network Switch Speeds: Fast Ethernet (100Mbps)
- *Lan Communication is Connected to the switching hub
LiDAR
| Pin | Function | Color |
|---|---|---|
| 1 | VCC | Red |
| 2 | GND | Black |
| 3 | LAN TX+ | White/Green |
| 4 | LAN TX- | Green |
| 5 | LAN RX+ | White/Orange |
| 6 | LAN RX- | Orange |
- VCC: 12V
- Max. Current: 2A
- Network Switch Speeds: Fast Ethernet (100Mbps)
- *Lan Communication is Connected to the User PC

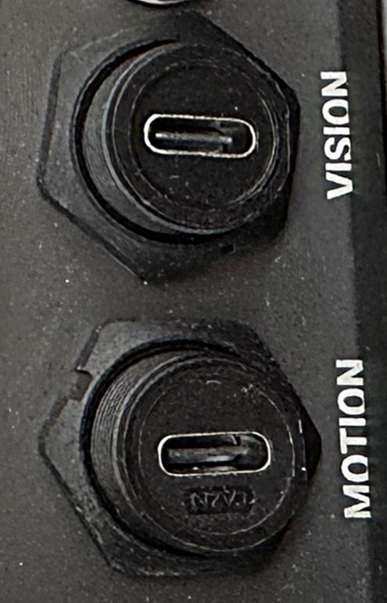

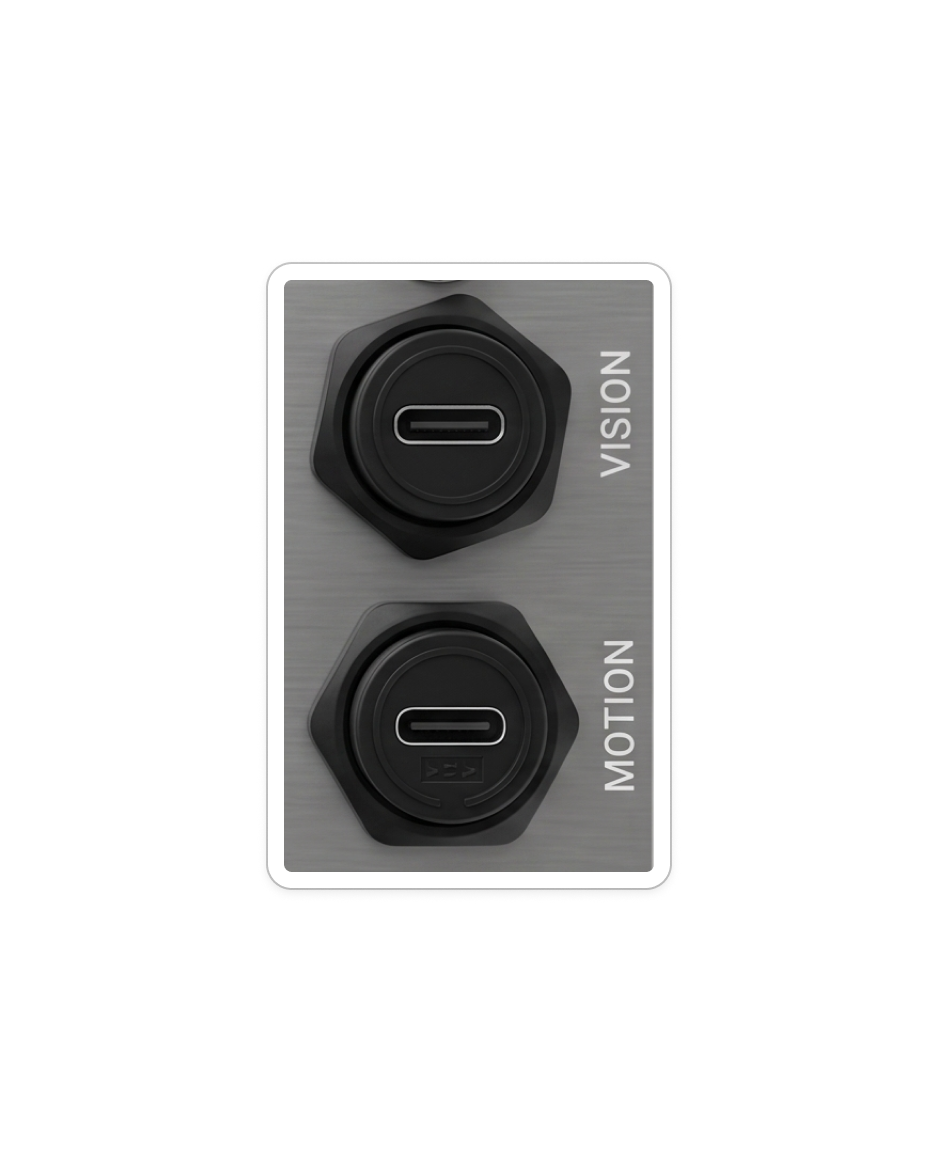

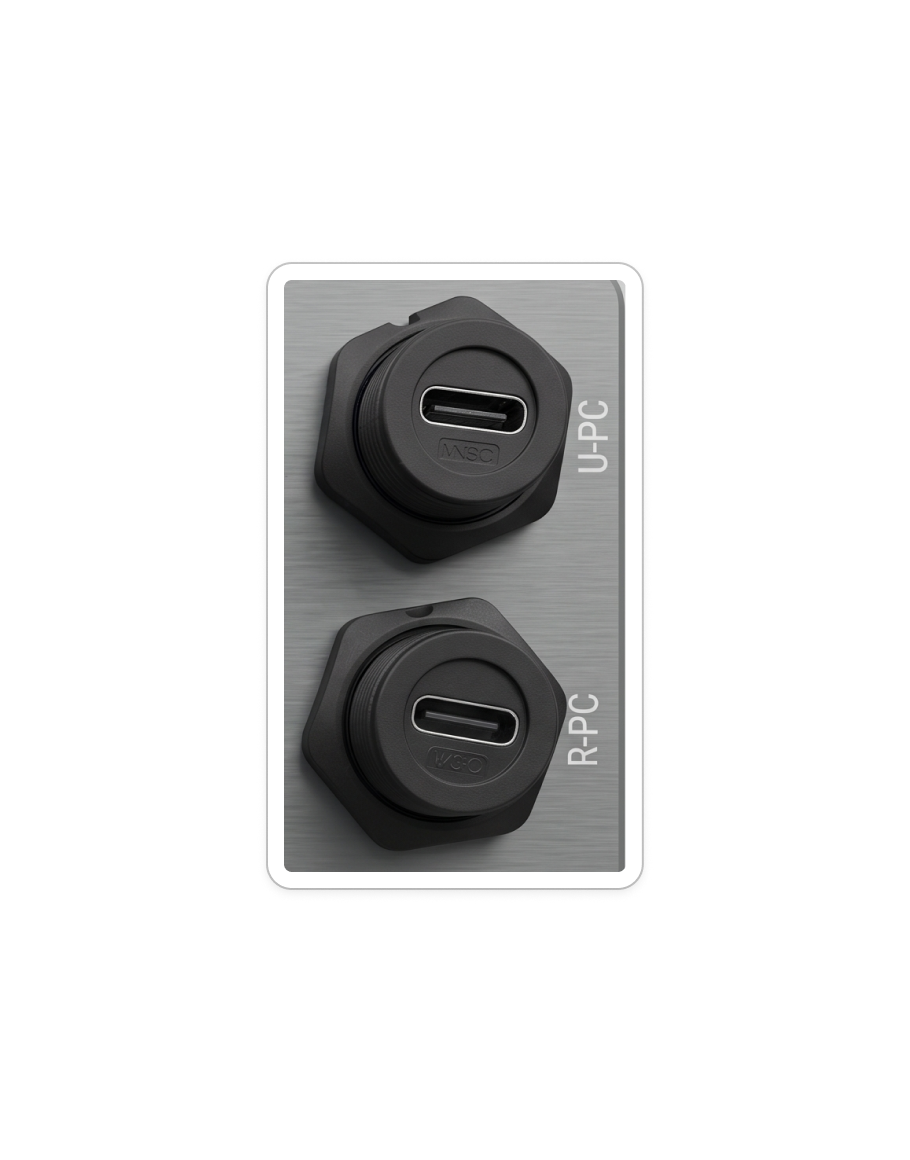

Direct PC Port
Vision
- Connected to the User PC
Motion
- Connected to the Robot PC
