Comm & Lidar module Attachment/Detachment

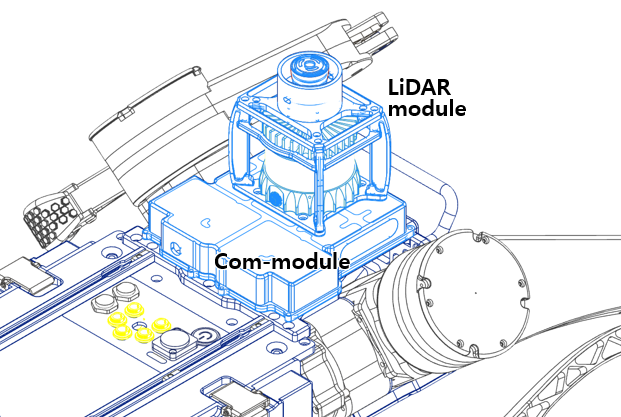

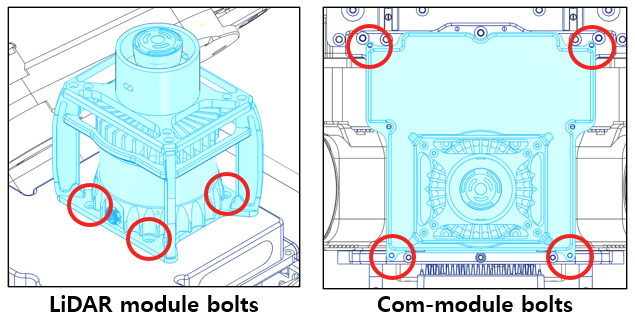

The communication module and LiDAR module of the RBQ10 can be removed if needed. Detachment is possible by removing the bolts that secure these modules. When detaching the modules, the robot's power must always be turned off. The locations and specifications of these bolts are as follows.
LiDAR module specification
| Parameter | Specification |
|---|---|
| Bolts | M4 x 5mm hex-bolts |
| Hex wrench | 3mm |
| Q’ty | 4 on each edge |
Communication Module Specification
| Parameter | Specification |
|---|---|
| Bolts | M4 x 10mm hex-bolts |
| Hex wrench | 3mm |
| Q’ty | 4 on each edge |
