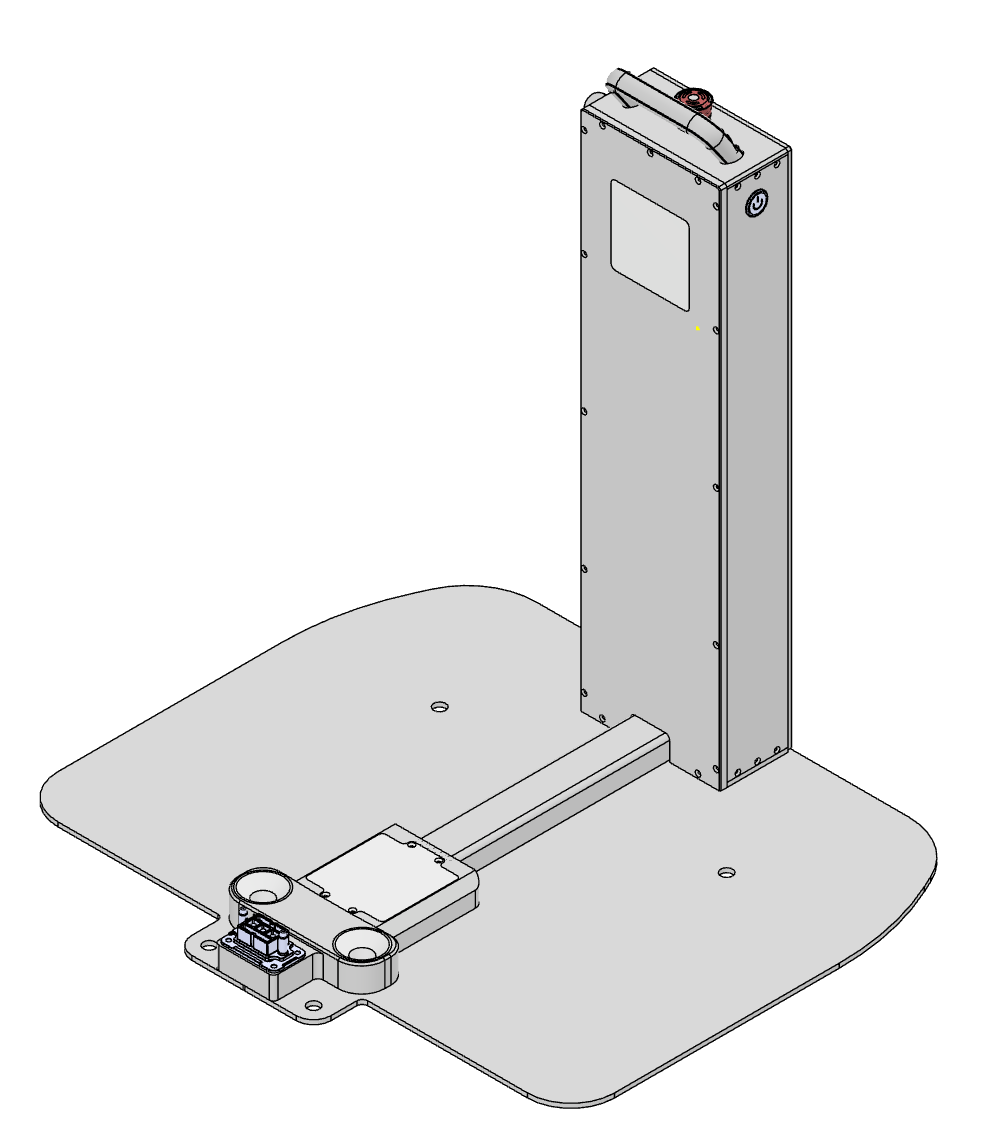

Docking Station
The docking station helps RBQ automatically charge by moving to the charging station and executing a charging command when a mission is complete or the battery is low. With the docking station, the robot can repeatedly perform missions with minimal human intervention.
TIP
For docking station operation, see Charging.
Specifications
General
| Item | Specification |
|---|---|
| Weight | 15kg |
| Dimensions | 640 x 550 x 653.5 mm |
Output
| Item | Specification |
|---|---|
| Charging voltage | 57.6 V |
| Charging current | 10.5 A |
AC Input
| AC input voltage | Input current |
|---|---|
| 63 Vac | 7 A |
| 230 Vac | 3.3 A |
| 277 Vac | 2.9 A |
Operating and Storage Environment
| Category | Item | Specification |
|---|---|---|
| Operating | Operating temperature | -40 ~ +70 C |
| Operating | Operating humidity | 20 ~ 95 % RH (non-condensing) |
| Storage | Temperature | -40 ~ +85 C |
| Storage | Humidity | 10 ~ 95 % RH (non-condensing) |

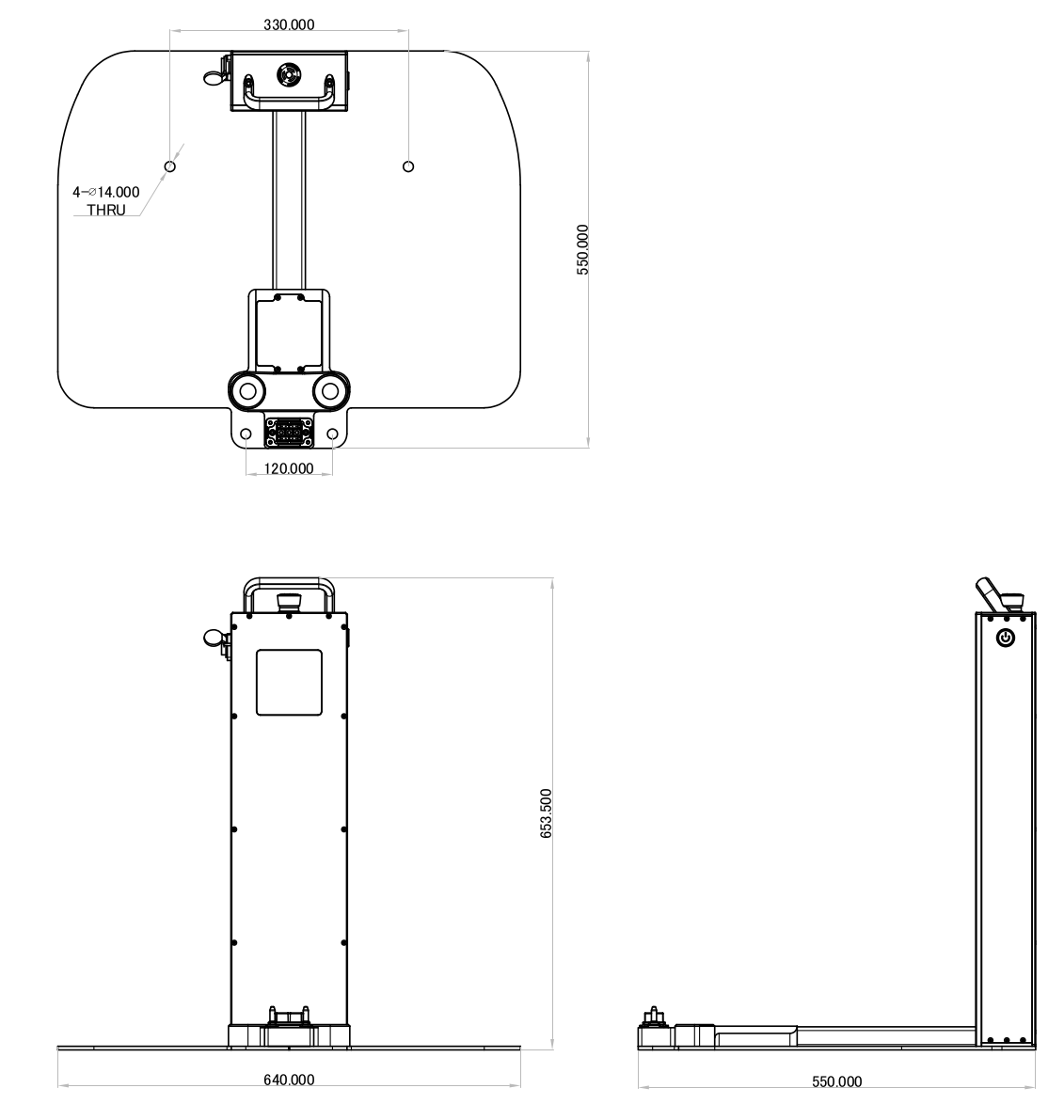

Drawing
