Stand & Bumper Replacement

The stand that supports the body of the RBQ10 when it is in a standby sitting position, and the front and rear bumpers that absorb impact when the robot falls, wear out with use and need to be replaced. The replacement method is as follows, so please refer to it if necessary.

Stand replacement

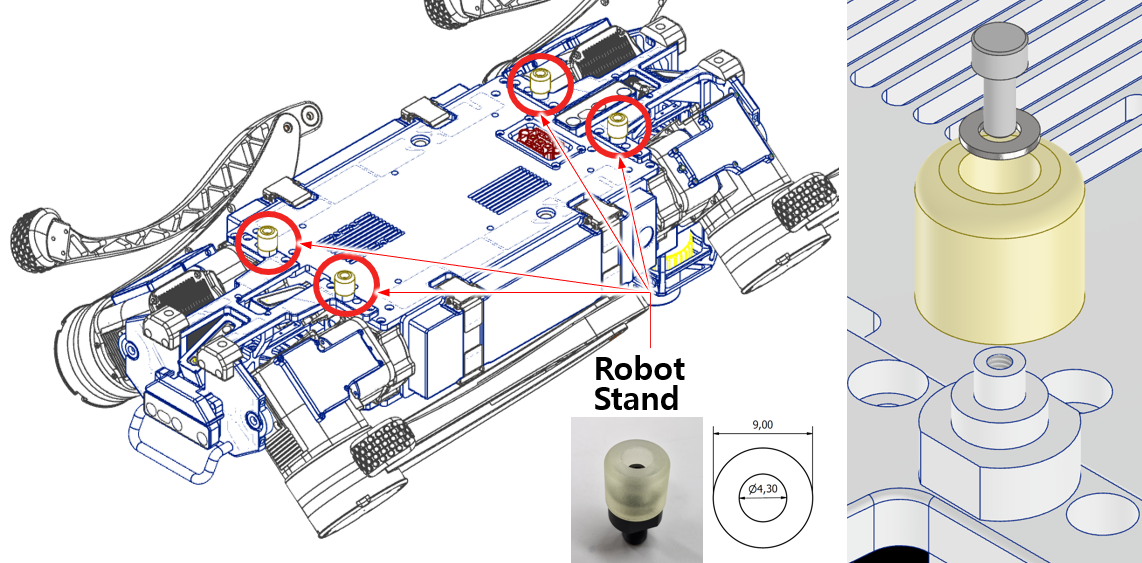

The stand of the RBQ10 consists of M4x10mm hex-wrench bolts and M4 flat washers. If any parts are lost during disassembly, you can purchase replacements of the same specifications.

Step 1. Unscrew the bolt using a 3mm hex wrench.

Step 2. Pull out the urethane stand and replace it with a new component.

Step 3. Fasten the bolt. (Apply Loctite 243 to the bolt thread)

Front & rear bumpers

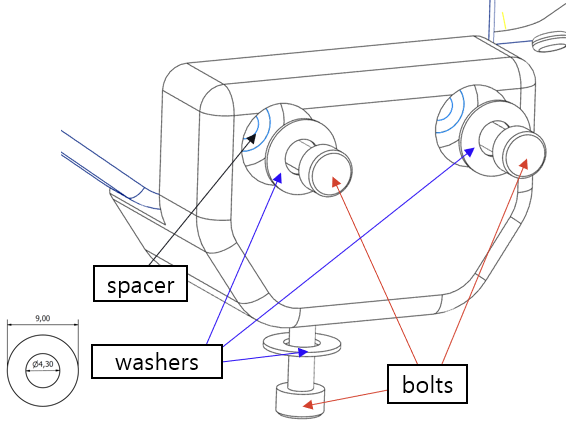

3 sets of M3x10mm bolts and M4 flat washers attach the bumper to the robot.

Use a 2.5mm hexagonal wrench to untighten the bolts.
