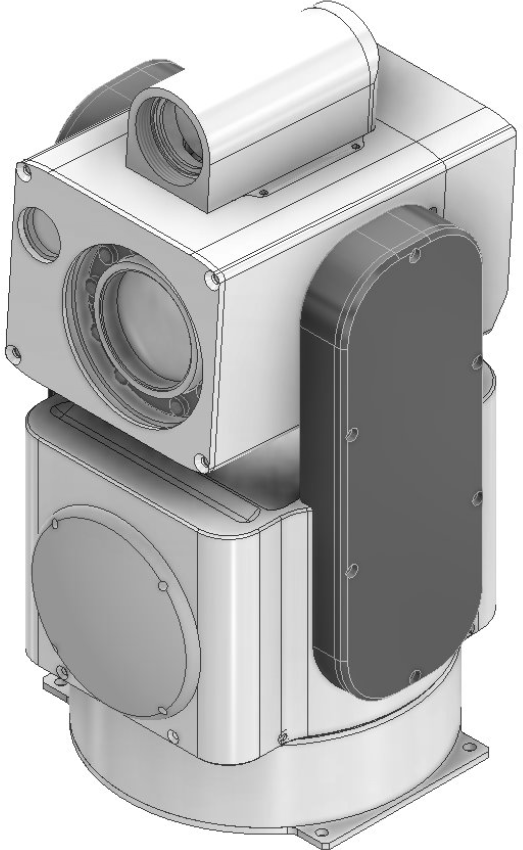

PTZ Camera
The PTZ camera consists of a 32x zoom camera, thermal camera, speaker, and microphone. It supports a range of missions including patrol, thermal detection, facility inspection, and public address broadcasting.
TIP
For PTZ camera operation, see PTZ GUI.
PTZ Camera Specifications
General
| Item | Specification |
|---|---|
| Weight | 5kg |
| Dimensions | 160 x 160 x 320 mm |
| Control Range | Pan +/-165° Tilt -12° ~ +90° |
Zoom Camera
| Item | Specification |
|---|---|
| Resolution | Up to 1920x1080 |
| Max Frame Rate | 30 FPS (varies by resolution) |
| Optical Zoom | 32x |
| Field of View | Horizontal: 64.66° (wide) ~ 2.29° (tele) Vertical: 38.08° (wide) ~ 1.30° (tele) |
Thermal Camera
| Item | Specification |
|---|---|
| Resolution | Up to 640x512 |
| Field of View | 48.7° x 38.6° |
| Measurement Temperature Range | -20C ~ +550C |
Speaker
| Item | Specification |
|---|---|
| Output | Up to 25 W |
| Bandwidth | 100-20000 Hz |
Microphone
3.5 mm external jack provided
