Foot Replacement

The rubber feet of the RBQ10 wear down with use. If the feet are significantly worn, they need to be replaced. The replacement process is as follows.

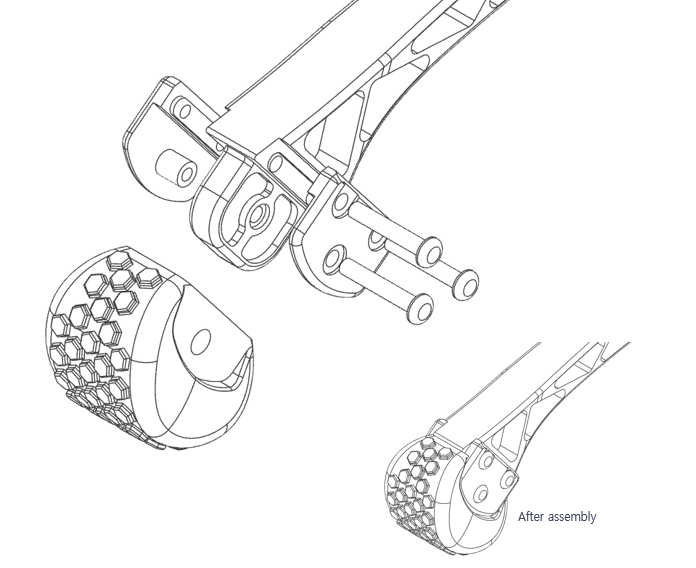

Step 1. Unscrew the bolt using a 3mm hex wrench.

Step 2. Remove the foot covers and pull the rubber foot.

Step 3. Replace the foot with a new component.

Step 4. Fasten the bolts to the cover. (Apply Loctite 243 before fastening)
