Handling and Transportation

Safe handling when moving, packing, and shipping the RBQ. Packing and unpacking steps are also on the Packing page.

General precautions when moving

• Power off: Always turn power off before lifting or moving. If power is on, legs can move and cause injury.
• The robot is heavy and joints can move-support it so it cannot fall, or use designated carriers/moving methods.

Pinch hazard and handles

• Keep fingers, clothing, long hair, and jewelry out of handle and joint areas. Grip handles with a closed fist; do not insert fingers where they can be pinched.

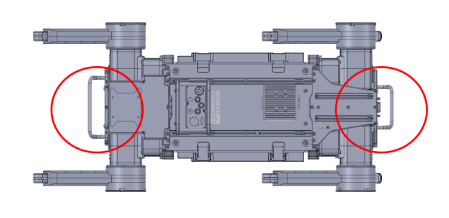

[ Grip handles with a closed fist so fingers cannot be pinched. ]

Lifting

• Two people required: Always lift with two people front and back. With one hand support the left/right legs (or body side); with the other hand grip the handle in a fist. Lift using the handle so the whole robot stays level and stable. Lifting from one side only or twisting can drop legs or shift the center of mass.
• The RBQ is modular. Unlike a single-piece body, parts can separate and fall more easily. Avoid shock and twisting when lifting; do not drop-coordinate and move slowly.

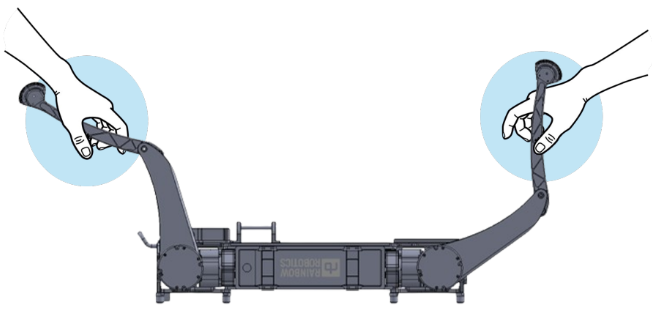

[ One hand supports left/right legs; the other grips the handle-lift by the handle and move the whole robot steadily. ]

⚠

WARNING

Do not force-lift or drag while power is on. Turn power off and secure a stable posture first. Modular construction is more vulnerable to separation and drops than a one-piece design-take extra care against shock and drops.

Packing and shipping

[ Ship in original packaging and secure so nothing moves inside the box. ]

• Original packaging: Use the factory packaging when possible-shock and vibration can damage internal parts.
• Securing: Cushion and secure so the robot cannot move inside the box.
• Labeling: Mark handling (orientation, fragile, etc.) and avoid excessive stacking or throwing.

Battery

i

NOTE

For air or sea shipment with the battery installed, check applicable rules (e.g. UN dangerous goods, airline rules). If required, remove the battery and ship separately-confirm in the manual or with Rainbow Robotics.

Docking station and charger

• Charger and docking station: Pack and ship without shock; avoid tangling or crushing cables.

Storage

• When not in use: Store in the dedicated case or docking station when possible. Case size and weight are in the product documentation.
• Environment: Follow storage temperature and humidity in Operating Environment Requirements. For the battery, follow Battery Handling Precautions.
