Driver Package

• Related repository: rby1_ros2 on GitHub

Overview

rby1_ros2 is a unified ROS 2 driver package for controlling the Rainbow Robotics RBY1 robot.
It wraps the RBY1 C++ SDK into a ROS 2 node, providing state monitoring and multiple control modes (Joint Position, Cartesian Position, Impedance, Gravity Compensation, and Trajectory Streaming) through a clean action/service/topic interface.

• ROS 2 version: Humble

• OS: Ubuntu 22.04

• SDK compatibility: rby1-sdk 0.10.x and later

---

1-1. Configure driver_parameters.yaml

Located at rby1_driver/config/driver_parameters.yaml.
Edit this file to match your robot before launching the driver.
Because the workspace was built with --symlink-install, no rebuild is needed after editing.

[!IMPORTANT] For simulation testing, keep robot_ip: "127.0.0.1:50051".
Some state values (battery, tool flange FT/IMU) will show zeros in simulation because no physical sensors are attached.

Parameter	Default	Description
robot_ip	"127.0.0.1:50051"	Robot IP address and gRPC port
model	"m"	Robot model — "a" (RBY1-A) or "m" (RBY1-M)
state_topic_name	"joint_states"	Fixed default namespace prefix for all state topics
joint_position_topic_name	"robot_joint"	Fixed default action server name for joint position commands
cartesian_position_topic_name	"robot_cartesian"	Fixed default action server name for Cartesian commands
get_state_period	0.01	State publish interval (seconds) — default 100 Hz
minimum_time	2.0	Default minimum execution time for motion commands (seconds)
angular_velocity_limit	4.712	Joint angular velocity limit (rad/s)
linear_velocity_limit	1.5	Cartesian linear velocity limit (m/s)
acceleration_limit	1.0	Acceleration scaling factor
se2_minimum_time	1.0	Minimum execution time (interpolation ramp) for SE2 velocity commands (seconds)
se2_linear_acceleration_limit	0.5	Linear acceleration limit for SE2 velocity commands
se2_angular_acceleration_limit	0.5	Angular acceleration limit for SE2 velocity commands
fault_reset_trigger	true	Auto-reset MAJOR/MINOR fault on driver startup
node_power_off_trigger	false	Power off robot automatically when driver node exits
collision_enable	false	Enable self-collision detection
collision_threshold	0.01	Collision detection distance threshold (meters)
publish_battery_state	true	Enable battery state topic
publish_tool_flange_state	true	Enable tool flange state topics (left + right)

---

1-2. Run Simulator (optional)

If you do not have a physical robot, run the Docker simulator.
The robot IP in this case is "127.0.0.1:50051" or "localhost:50051".
Change the tag at the end to select a model/version (e.g. a_v1.2, m_v1.3).

# Example: Model A, firmware v1.2
sudo docker run --rm \
  -e DISPLAY=${DISPLAY} \
  -v /tmp/.X11-unix:/tmp/.X11-unix \
  -p 50051:50051 \
  rainbowroboticsofficial/rby1-sim:0.10.6-a_v1.2

[!IMPORTANT]

Model a only supports firmware up to v1.2. Model m supports v1.0–v1.3.

---

1-3. Launch the Driver

# In your workspace root
source install/setup.bash

# Option A: Launch normally
ros2 launch rby1_driver rby1_ros2_driver.launch.py

# Option B: Launch with a custom namespace (topic names remain relative)
ros2 launch rby1_driver rby1_ros2_driver.launch.py namespace:=my_robot

1-4. Run Examples

Each example can be run in a separate terminal while the driver is active:

source install/setup.bash
ros2 run rby1_examples <example_name>

Example	Command	Description
01_power_control	ros2 run rby1_examples 01_power_control	Full power lifecycle: Power ON/OFF, Servo ON/OFF
02_brake_control	ros2 run rby1_examples 02_brake_control	Releases and re-engages arm brakes via IDLE state
03_robot_status_monitor	ros2 run rby1_examples 03_robot_status_monitor	Comprehensive state monitor (CM state, brakes, battery, FT)
04_tool_flange_monitoring	ros2 run rby1_examples 04_tool_flange_monitoring	Continuously prints tool flange FT/IMU/IO data
05_joint_state_monitoring	ros2 run rby1_examples 05_joint_state_monitoring	Prints per-component joint positions in real time
06_gravity_compensation	ros2 run rby1_examples 06_gravity_compensation	Enables gravity compensation (direct teaching) mode
08_zero_pose	ros2 run rby1_examples 08_zero_pose	Moves all joints to 0 rad simultaneously
09_joint_command	ros2 run rby1_examples 09_joint_command	Sends Ready Pose → Zero Pose via joint position action
10_cartesian_command	ros2 run rby1_examples 10_cartesian_command	Moves the right arm to a target Cartesian pose
11_multi_controls	ros2 run rby1_examples 11_multi_controls	Simultaneous joint + Cartesian control per body part
12_trajectory_joint_command	ros2 run rby1_examples 12_trajectory_joint_command	Streams a pre-computed trajectory via persistent command streams
13_cancel_control	ros2 run rby1_examples 13_cancel_control	Demonstrates action cancel and Trigger service cancel
14_mobile_base_control	ros2 run rby1_examples 14_mobile_base_control	Drives robot wheels via relative cmd_vel Twists
15_stream_command	ros2 run rby1_examples 15_stream_command	Alternates Zero/Ready poses using regular joint commands over persistent stream with varying wait intervals

---

2. Package Structure

Package	Role
rby1_driver	C++ main driver node. Wraps the RBY1 SDK and exposes a ROS 2 interface.
rby1_msgs	Custom message, service, and action definitions for robot control and state.
rby1_examples	Python example scripts demonstrating all major driver features.
rby1_description	Robot description for ROS, demonstrating URDF and Mesh files, and simple visualization launch file.

---

3. System Architecture

[User Node / Example]
        │
   ROS 2 Topics / Services / Actions
        │
  ┌─────▼────────────────────┐
  │   rby1_ros2_driver (C++) │
  │  ┌────────────────────┐  │
  │  │   State Publisher  │  │  ← reads robot state via SDK, publishes ROS topics
  │  ├────────────────────┤  │
  │  │  Service Handlers  │  │  ← power, servo, brake, gravity comp, CM commands
  │  ├────────────────────┤  │
  │  │  Action Servers    │  │  ← joint commands, Cartesian commands, streaming
  │  └────────────────────┘  │
  └─────────────────┬────────┘
                    │ gRPC
             ┌──────▼──────┐
             │  RBY1 Robot │
             │  (or Sim)   │
             └─────────────┘

Key internal components:

• State Loop: Calls GetState() and GetControlManagerState() at get_state_period intervals and publishes all state topics.

• Action Executors: Each action goal is translated into an SDK CommandBuilder command and executed synchronously. Minor faults during execution trigger automatic reset and recovery.

• Safety Guard: All motion commands are rejected unless the Control Manager is in ENABLE or EXECUTING state.

• Collision Detection: When collision_enable: true, self-collision is monitored and CancelControl() is called automatically if distance falls below collision_threshold.

---

4. Control Manager States

The RobotState.control_manager_state field (and the robot_state topic) uses the following integer constants, also accessible as RobotState.STATE_*:

Value	Constant	Description
0	STATE_NONE	Driver not initialized or disconnected
1	STATE_IDLE	Control Manager is disabled (IDLE). Safe for brake operations.
2	STATE_ENABLE	Control Manager is active and holding position
3	STATE_EXECUTING	A motion command is currently being executed
4	STATE_MAJOR_FAULT	Unrecoverable hardware fault — requires reset
5	STATE_MINOR_FAULT	Recoverable fault — driver auto-resets by default

---

5. Communication Interfaces

5-1. Topics (Publishers)

Topic	Type	Always Active	Description
joint_states/torso	sensor_msgs/JointState	✅	Torso joint positions, velocities, torques
joint_states/right_arm	sensor_msgs/JointState	✅	Right arm joint state
joint_states/left_arm	sensor_msgs/JointState	✅	Left arm joint state
joint_states/head	sensor_msgs/JointState	✅	Head joint state
robot_state	rby1_msgs/RobotState	✅	Control Manager state, brakes, EMO, CoM, tool flange connection
battery_state	sensor_msgs/BatteryState	⚙️ publish_battery_state	Battery voltage, current, percentage
tool_flange/left	rby1_msgs/ToolFlangeState	⚙️ publish_tool_flange_state	Left flange: FT sensor, IMU, switch, voltage, digital I/O
tool_flange/right	rby1_msgs/ToolFlangeState	⚙️ publish_tool_flange_state	Right flange: FT sensor, IMU, switch, voltage, digital I/O
odom	nav_msgs/Odometry	✅	High-rate robot odometry and TF broadcast relative to node namespace

5-2. Topics (Subscribers)

Topic	Type	Description
cmd_vel	geometry_msgs/Twist	Velocity command for driving base wheels (linear x, y and angular z)

[!IMPORTANT] Mobile Base Control (cmd_vel) streaming requirement: Since cmd_vel acts as a high-frequency publisher, you must enable persistent stream control before publishing base velocity commands.

• Call /stream_control with state: true before sending cmd_vel commands.

• Call /stream_control with state: false after finishing base control to return to regular position hold.

• Attempting to activate /stream_control when already active is idempotent; the service will safely log a warning and return success.

⚙️ = controlled by the corresponding flag in driver_parameters.yaml

---

5-3. Services

Service	Type	Description
robot_power	rby1_msgs/StateOnOff	Power ON/OFF. parameters: "all", "48v", "5v", etc.
robot_servo	rby1_msgs/StateOnOff	Servo ON/OFF. parameters: "all", joint/part names
tool_flange_power	rby1_msgs/StateOnOff	Set tool flange voltage. parameters: "12v", "24v", "48v" (ON) or "" (OFF)
gravity_compensation	rby1_msgs/GravityCompensation	Enable/disable gravity compensation per body part
cancel_control	std_srvs/Trigger	Cancel all active motion commands immediately
get_cartesian_pose	rby1_msgs/GetCartesianPose	Query Cartesian transform between two links
control_manager_command	rby1_msgs/ControlManagerCommand	Send CMD_ENABLE / CMD_DISABLE / CMD_RESET to the Control Manager
set_motor_brake	rby1_msgs/StateOnOff	Engage (state=true) or release (state=false) a joint brake. parameters: joint name (e.g. "right_arm_3"). Only available in STATE_IDLE.
stream_control	rby1_msgs/StateOnOff	Enable/disable persistent streaming mode with 10-minute hold times (state=true to enable, state=false to disable)

ControlManagerCommand constants

Constant	Value	Description
CMD_NONE	0	No operation
CMD_ENABLE	1	Enable the Control Manager (start position hold)
CMD_DISABLE	2	Disable the Control Manager (transition to IDLE)
CMD_RESET	3	Reset MAJOR/MINOR fault and return to IDLE

---

5-4. Action Servers

Action Server	Type	Description
robot_joint	rby1_msgs/Rby1JointCommand	Whole-body joint position command. Each body part (torso, right_arm, left_arm, head) can be commanded independently in a single goal.
robot_cartesian	rby1_msgs/Rby1CartesianCommand	Whole-body Cartesian command. Each arm and torso can be assigned an . geometry_msgs/msg/Transform.msg (position, quaternion)
stream_position_command	rby1_msgs/StreamPosition	Streams a full JointTrajectory (multi-waypoint) to the robot.

[!IMPORTANT] The action server names (robot_joint, robot_cartesian) are configured via joint_position_topic_name and cartesian_position_topic_name in driver_parameters.yaml.

---

6. Custom Message Types

rby1_msgs/JointCommand (used inside Rby1JointCommand goals)

Field	Type	Default	Description
joint_names	string[]	—	Optional joint name list
position	float64[]	—	Target joint positions (rad)
minimum_time	float64	2.0	Minimum execution time (s)
velocity_limit	float64	4.7	Joint velocity limit (rad/s)
acceleration_limit	float64	1.0	Acceleration scaling
use_impedance	bool	false	Use joint impedance instead of position control
stiffness	float64[]	—	Impedance stiffness coefficients
damping_ratio	float64	1.0	Impedance damping ratio
torque_limit	float64	10.0	Impedance torque safety limit (N·m)

rby1_msgs/CartesianCommand (used inside Rby1CartesianCommand goals)

Field	Type	Description
target_link	string	Name of the end-effector link to control
ref_link	string	Reference coordinate frame link
transform	float64[16]	Row-major 4×4 homogeneous transform matrix
minimum_time	float64	Minimum execution time (s)
use_impedance	bool	Use Cartesian impedance instead of position control

rby1_msgs/RobotState

Field	Type	Description
control_manager_state	int32	Current Control Manager state (see constants above)
brake_state	BrakeState	Brake engagement per joint (left_arm[], right_arm[], torso[], head[])
tool_flange_state	bool[]	Tool flange connection status [left, right]
emo_state	bool	Emergency Stop pressed status
center_of_mass	float64[3]	Calculated CoM position [x, y, z] in meters

rby1_msgs/ToolFlangeState

Field	Type	Description
ft_force	float64[3]	Force [Fx, Fy, Fz] in Newtons
ft_torque	float64[3]	Torque [Tx, Ty, Tz] in N·m
gyro	float64[3]	Gyroscope [roll, pitch, yaw] in rad/s
acceleration	float64[3]	Accelerometer [ax, ay, az] in m/s²
switch_a	bool	Physical switch A state
output_voltage	int32	Output voltage in millivolts
digital_input_a/b	bool	Digital input A/B state
digital_output_a/b	bool	Digital output A/B state

---

7. Key Features

Robot Control

• Joint Position Control: Command each body part (Torso, Right/Left Arm, Head) to target joint angles (rad) via the robot_joint action. All parts can be commanded simultaneously in one goal.

• Cartesian Position Control: Command end-effector pose as a 4×4 SE3 transform via the robot_cartesian action.

• Impedance Control: Both joint and Cartesian modes support impedance control with configurable stiffness and damping.

• Gravity Compensation: Enables back-drivable joints for direct teaching; the driver continuously compensates gravity.

• Trajectory Streaming: Send a pre-computed JointTrajectory (multi-waypoint) via the stream_position_command action.

State Monitoring

• Joint states (position, velocity, torque) are published at up to 100 Hz per body part.

• A unified robot_state topic provides Control Manager state, brake status, EMO, and CoM in one message.

• Optional battery state and per-flange FT/IMU data can be enabled in driver_parameters.yaml.

Safety & Fault Management

• Motion commands are rejected if the Control Manager is not in ENABLE or EXECUTING state.

• Minor faults encountered during execution are automatically reset and control is resumed.

• Self-collision detection (optional): automatically calls CancelControl() when link distance falls below collision_threshold.

• Brake operations are only allowed in STATE_IDLE to prevent mechanical damage.

---

8. Notes & Known Limitations

• Simulator: Battery voltage, FT sensor, and IMU data read as 0.0 in simulation (no physical hardware).

• Tool flange topics require publish_tool_flange_state: true in driver_parameters.yaml.

• Brake control requires the Control Manager to be in STATE_IDLE. As an extra mechanical safety measure, brake commands are strictly rejected if 48V power is active (to prevent disengaging/engaging mechanical brakes while joints are powered). The brake_control example handles these states automatically.

• The trajectory_joint_command example currently uses StreamPosition only.

9. rby1_description

• You can use the robot’s basic TF structure and state publisher through the commands below. When implementing features related to rby1, please use the model files from the corresponding package.

• parameter

  • model_name :rby1a , rby1m

  • model_version

    • rby1a : 1.0, 1.1, 1.2

    • rby1m : 1.0, 1.1, 1.2, 1.3

source install/setup.bash
ros2 launch rby1_description rby1_state_publisher.launch.py model:=a version:=1_1

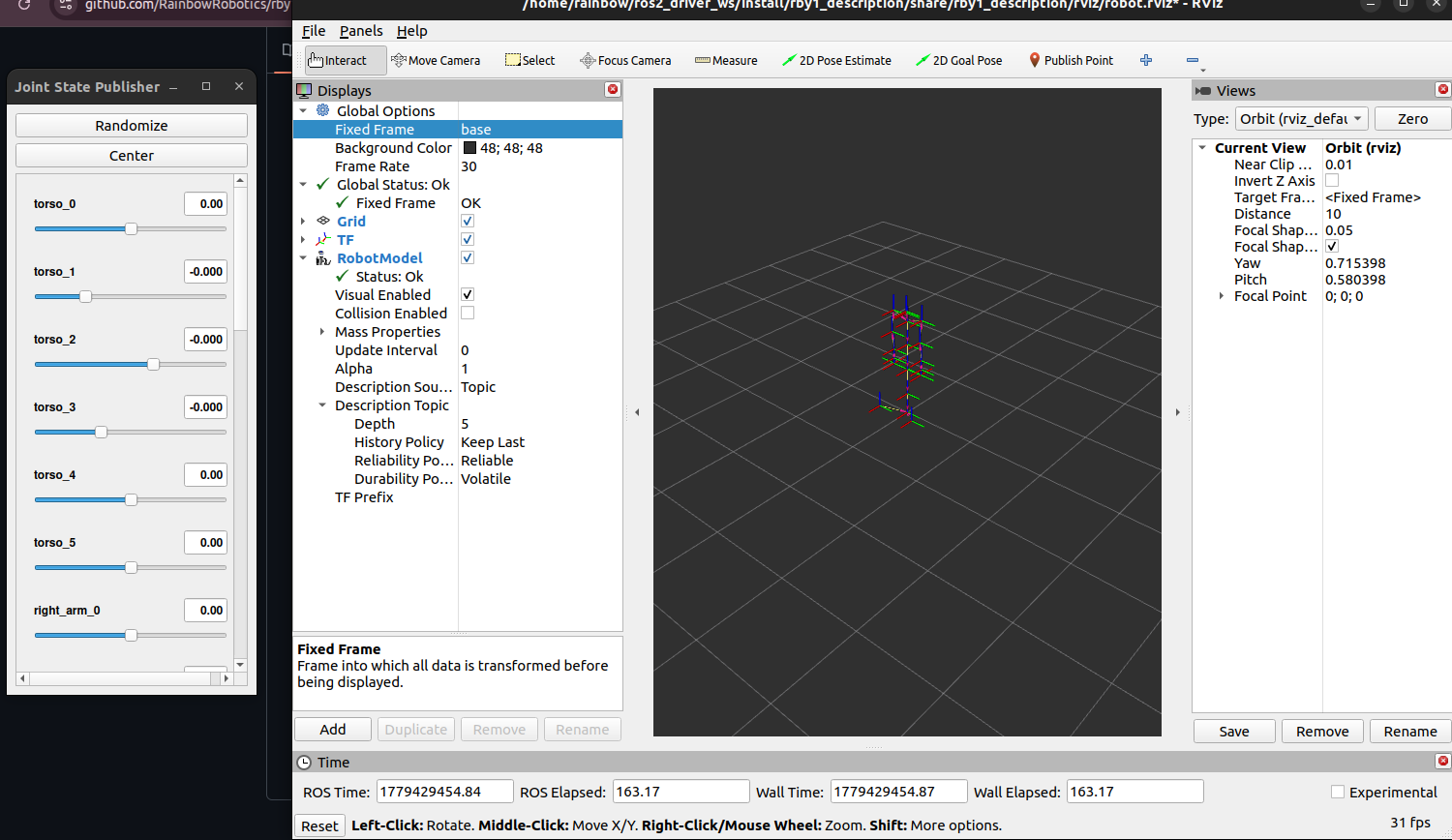

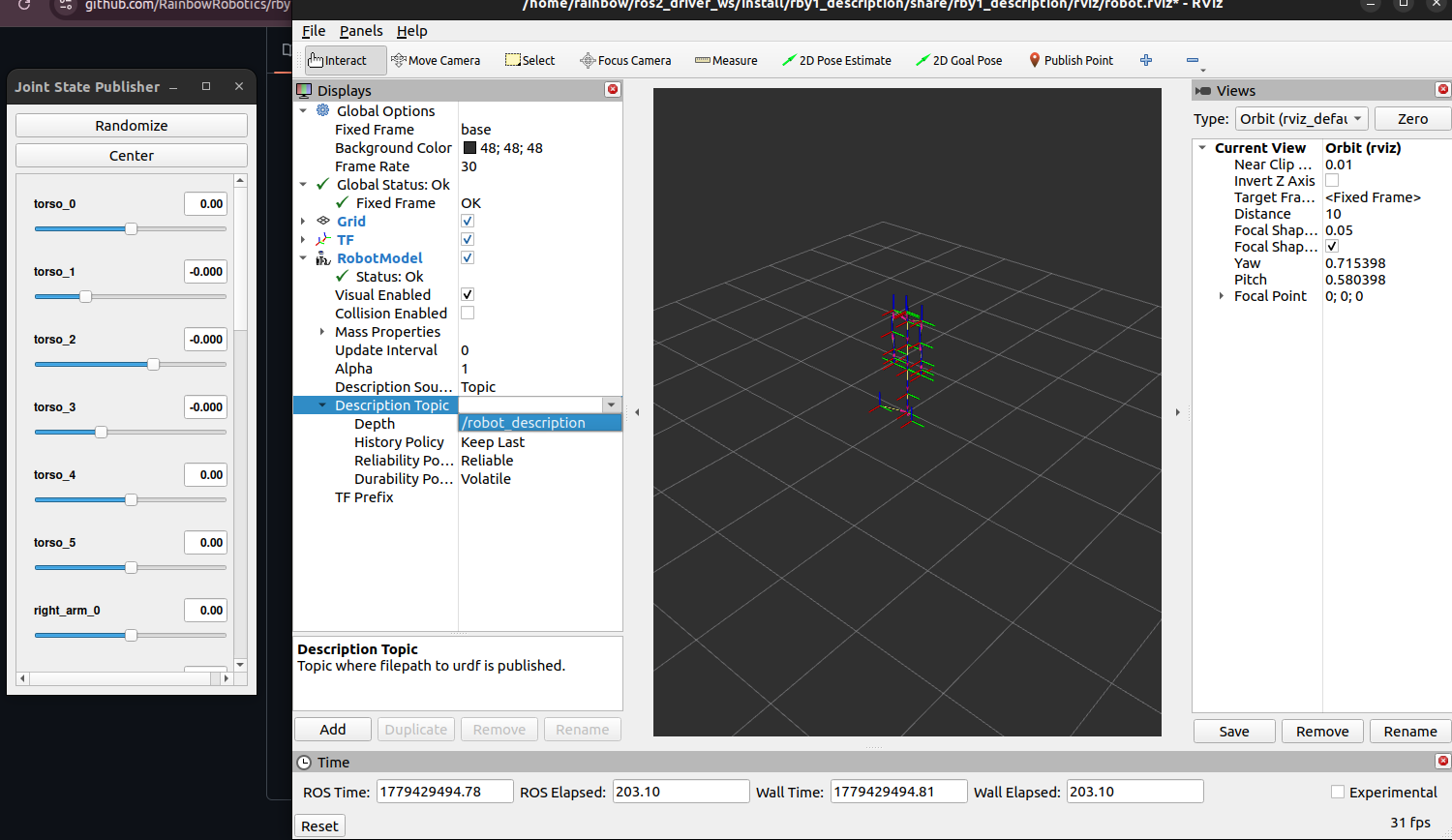

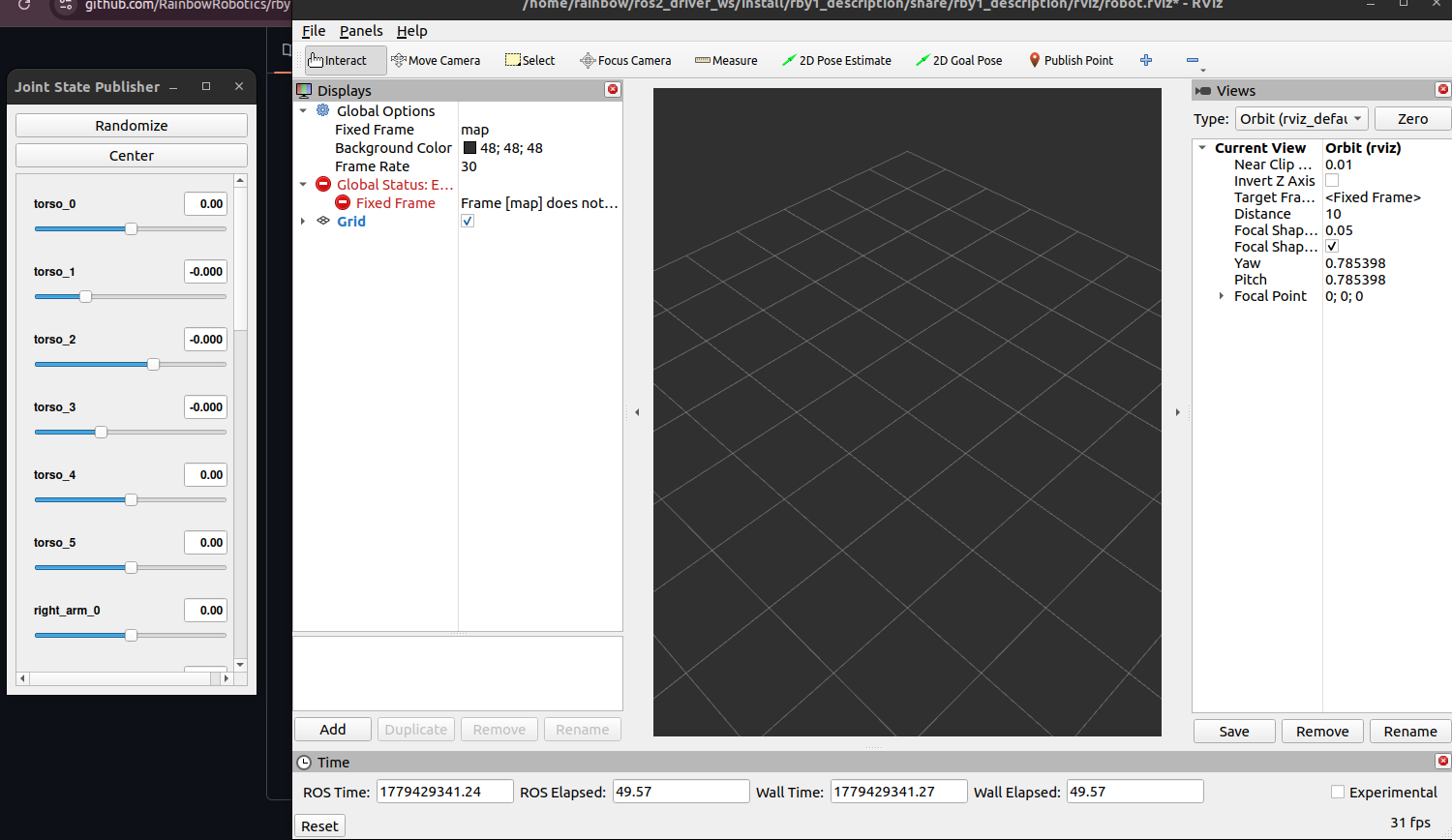

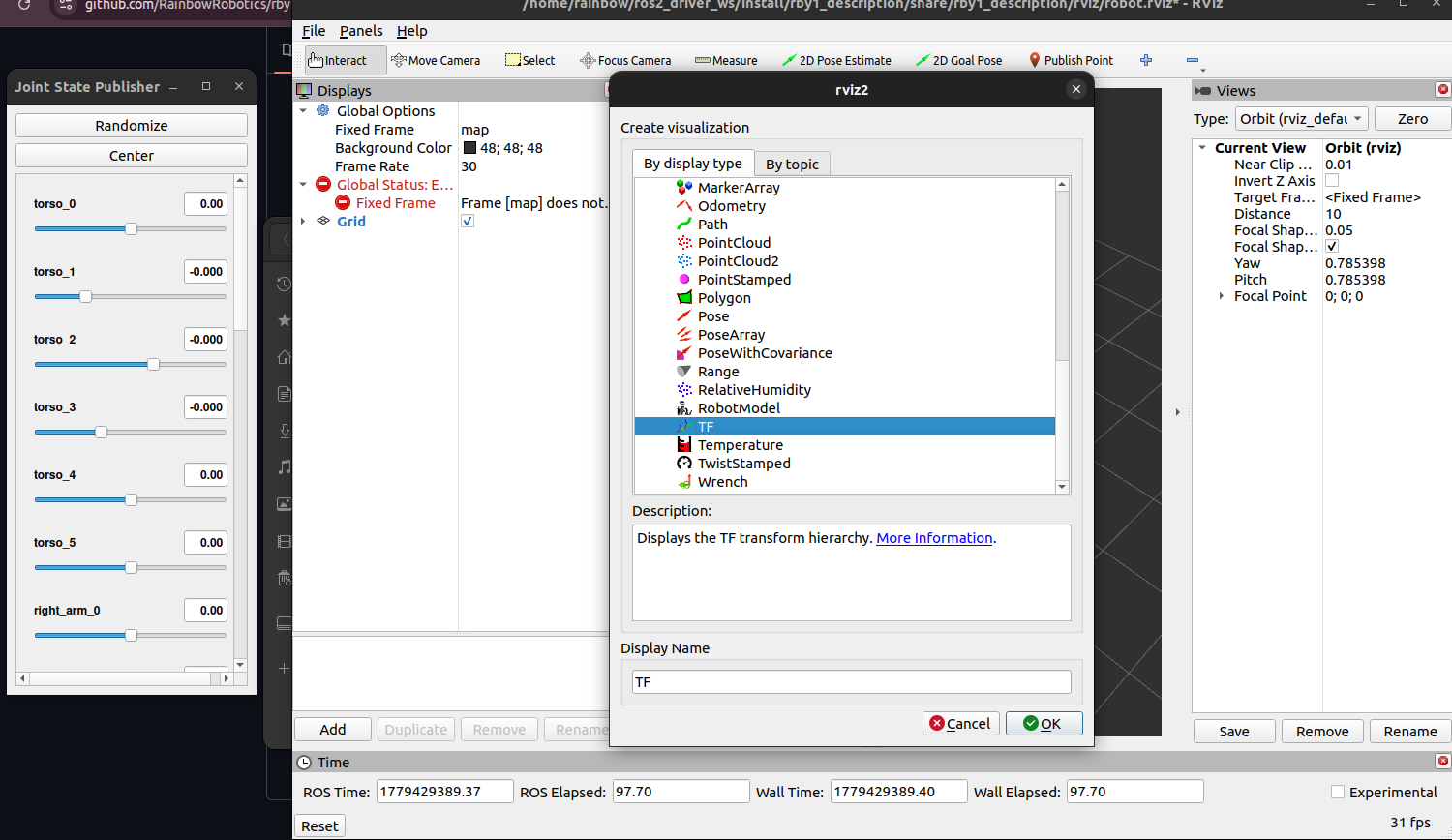

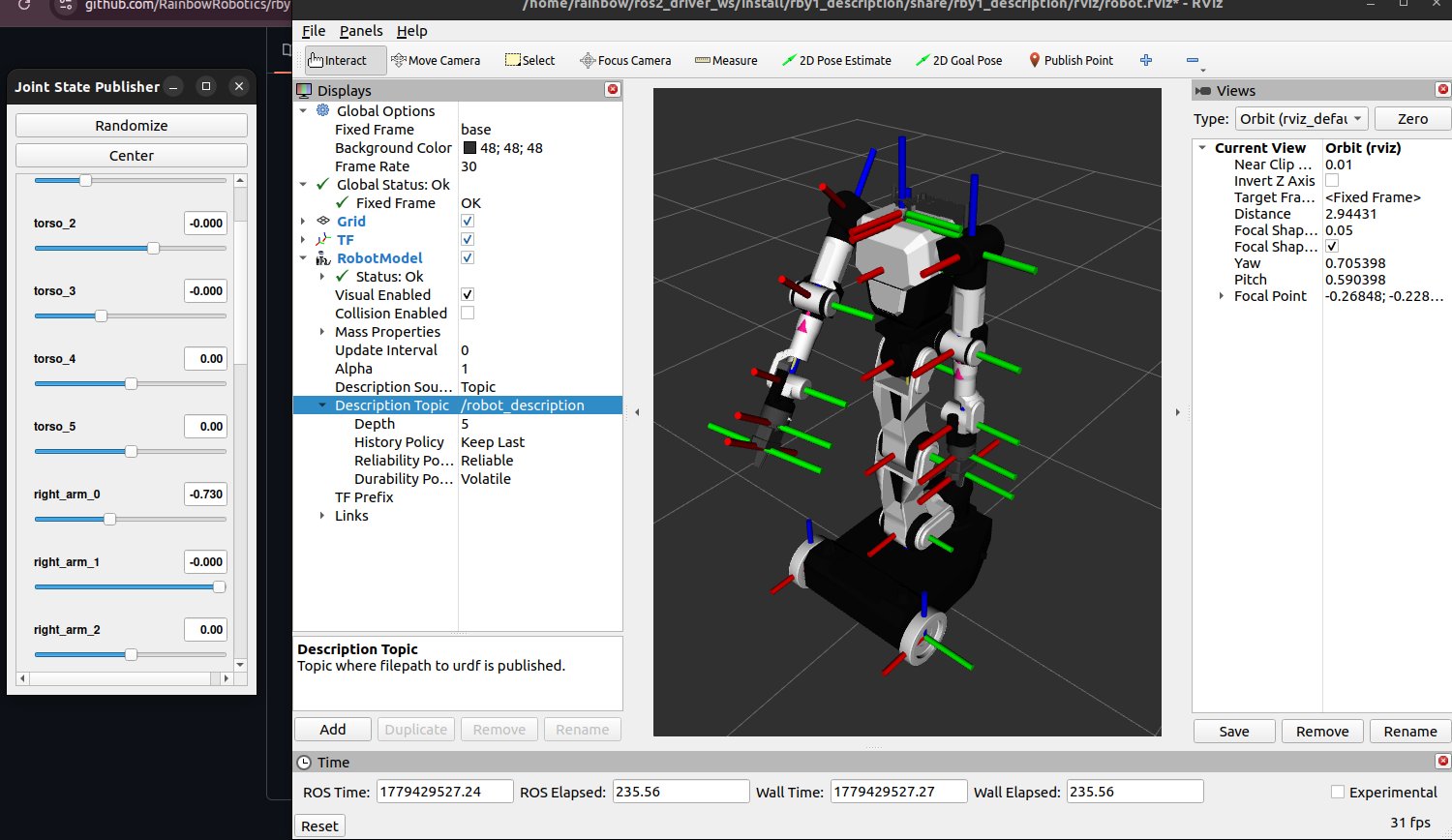

1. if you launch this command, you can see the following window

2. click ‘Add’, and add plugin TF,RobotModel

3. click Fixed Frame and set to base

4. click RobotModel, and select Topics->/robot_description

5. you can now control robot model by use joint state publisher gui
