Battery

Battery Charger

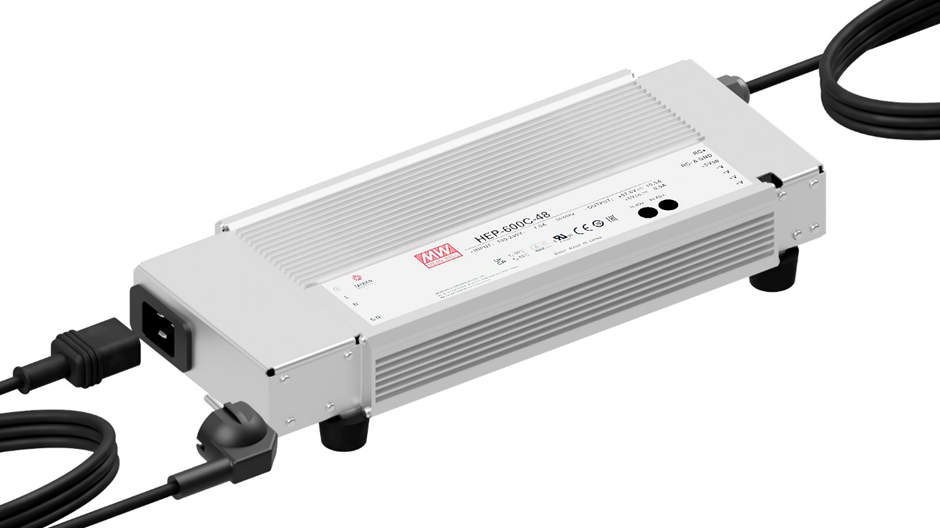

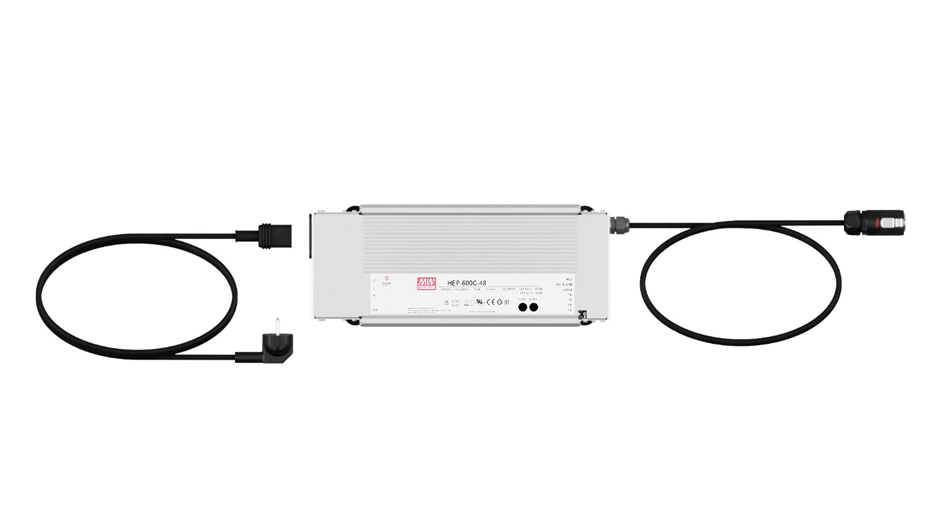

The RB-Y1 battery charger model is HEP-600C-48.

Note

This content is to prevent damage to the user’s safety and property in advance. Please read the following carefully and use it correctly.

---

Battery charger Specifications

Powering your devices safely and efficiently

• The table below provides details of the RB-Y1 charger.

General Properties	Value
Output Voltage Adj. Range	46.1 ~ 60.5V
Output Current Adj. Range	5.2 ~ 10.5A
Input Voltage Range	85 ~ 264VAC / 120 ~ 370VDC
Input Frequency Range	47 ~ 63Hz
Input AC Current (Typ.)	7A / 115VAC, 3.3A / 230VAC, 2.9A / 277VAC
Working Temp.	-40 ~ +70°C

---

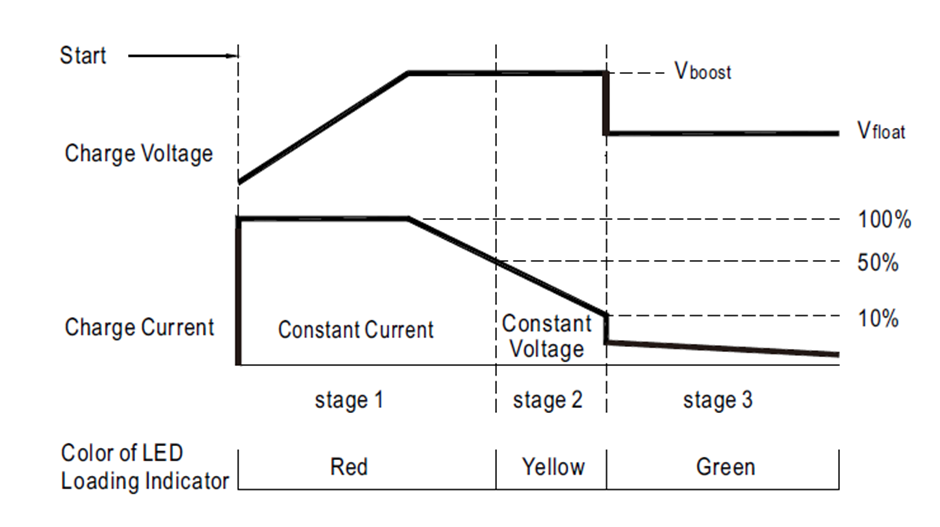

Charging Curve

Parameter	Value
Constant Current	10.5A
V_boost	57.6V
V_float	54.4V

---

Mechanical Specifications

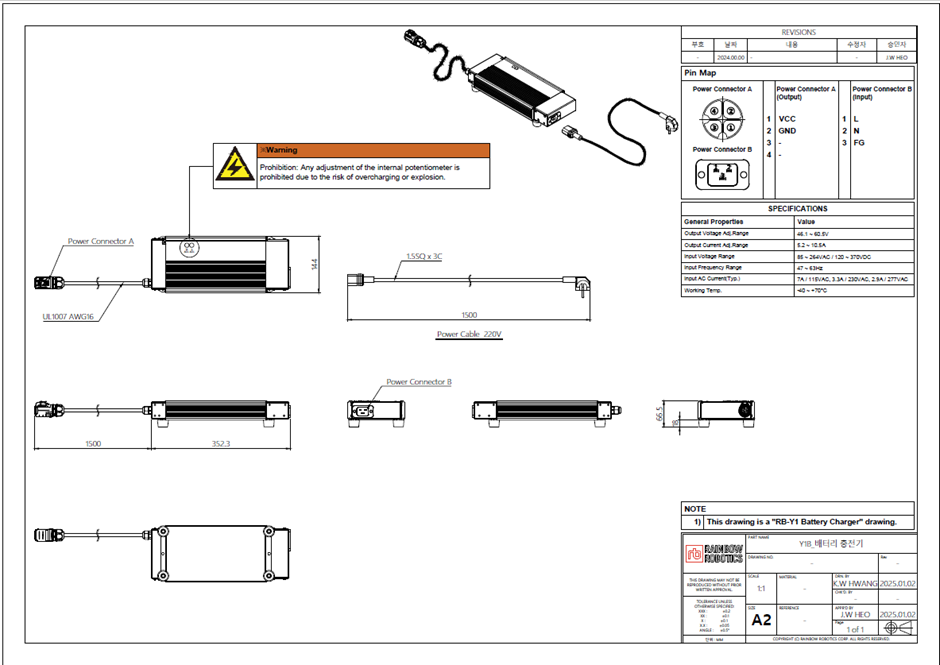

• Charger Drawing: Download

Battery Pack Specifications

The RB-Y1 uses different battery packs depending on robot model.

---

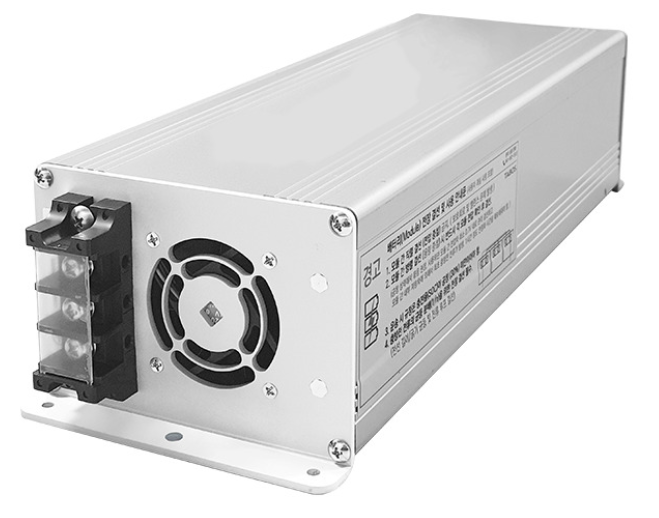

Model A Battery

Property	Value
Specification	Lithium-ion battery pack, 427 x 140 x 99 mm, 7.2 kg
Serial Number	Check the product label
Model Name	LV-50V25AH-DH375
Manufacturer	TABOS Inc.
Date of Manufacture	Check the product label
Voltage	Marked 50V / Nominal 51.7V
Capacity	25Ah, 1,250Wh
Cycle Life	Approx. 5,000 cycles based on the LV series (may vary depending on usage conditions)

---

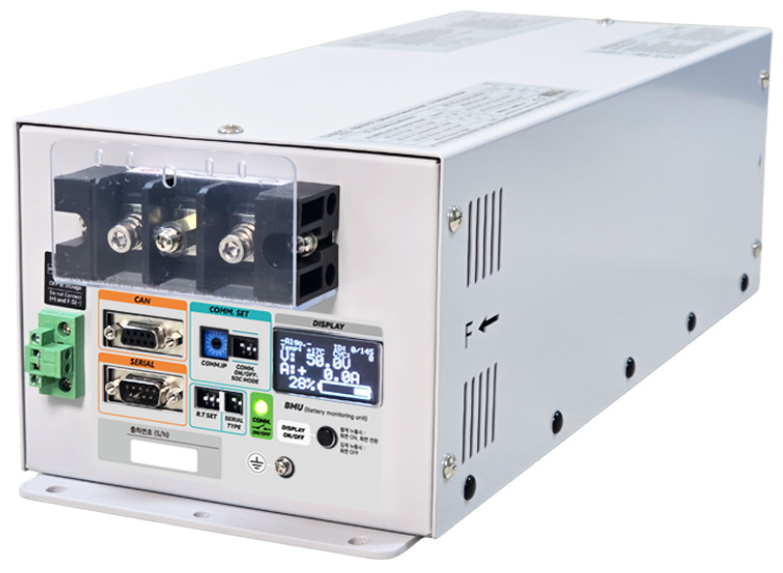

Model B Battery

Property	Value
Specification	Lithium-ion battery pack, 467 x 171 x 138 mm, 14.2 kg
Serial Number	Check the product label
Model Name	LV-50V50AH-VX2COM
Manufacturer	TABOS Inc.
Date of Manufacture	Check the product label
Voltage	Marked 50V / Nominal 51.7V
Capacity	50Ah, 2,500Wh
Cycle Life	Approx. 5,000 cycles based on the LV series (may vary depending on usage conditions)
